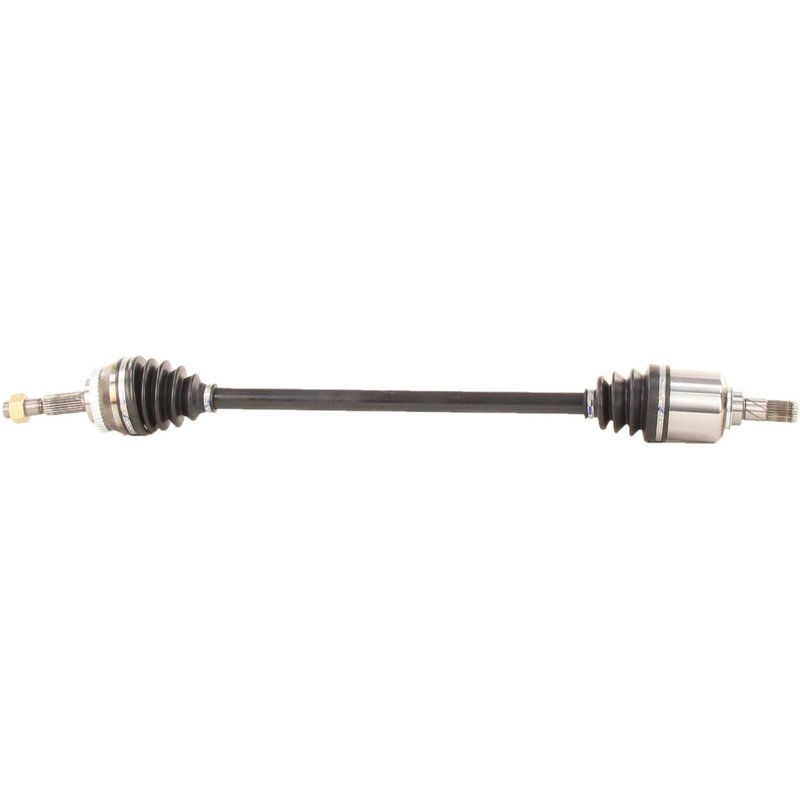

TrakMotive NI-8048 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8048

The TrakMotive CV Axle Shaft NI-8048 is designed specifically for Nissan 200SX, NX, and Sentra models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Nissan 200SX, NX, and Sentra vehicles
• Includes a neoprene boot for enhanced durability
• Equipped with a 42-tooth ABS ring and included tone ring
• Features a hex head axle nut with cotter pin locking mechanism
• Overall compressed length of 35.75 inches (908 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components tailored for specific vehicle applications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure proper driveline function. The NI-8048 model incorporates these standards with a male inboard joint and conventional outboard joint, making it suitable for Nissan models requiring these specifications.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors. The inboard joint is a male type with 25 splines, matching the outboard joint which also has 25 splines and a conventional connection style. The included ABS tone ring has 42 teeth and a toothed design, which is essential for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.6 mm) across flats, with a height of 5/7 inches (17.8 mm) and a length of 2 1/7 inches (54.7 mm). It uses an M22x1.5 thread size and locks securely with a cotter pin.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Nissan 200SX, NX, and Sentra
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Fixes axle nut loosening problems with cotter pin locking design

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. The hex head axle nut requires a 1 1/4 inch (31.6 mm) socket for proper torque application. The cotter pin locking mechanism must be properly secured to prevent loosening. Inspect the CV boot for any damage during installation and confirm the ABS tone ring is correctly positioned for sensor alignment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8048 is a new, not remanufactured, component built to meet OEM specifications. It undergoes quality checks to ensure durability and fitment accuracy. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
