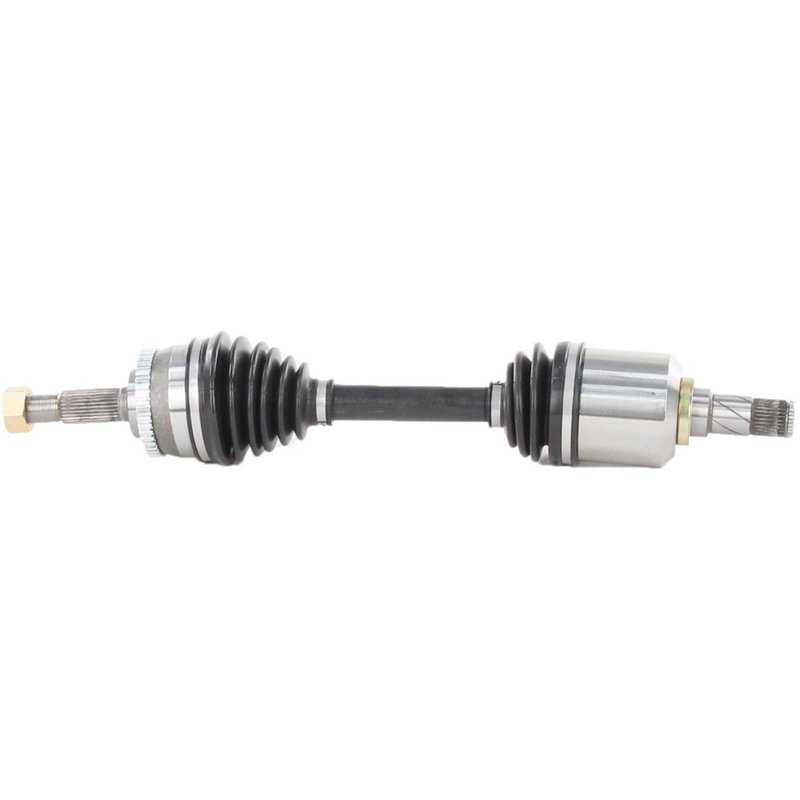

TrakMotive NI-8054 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8054 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.13 |
| Overall Compressed Length (mm) | 613 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 5 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Anchor 9745, Cardone New 66-6054 and Cardone Reman 60-6044 for the same application. See all 28.
CV Axle Shaft for Nissan Altima
TrakMotive NI-8054 is a new CV axle shaft built for front-left service on select Nissan Altima applications. It is specified for 1993-1997 Nissan Altima models, including 1993-1994 vehicles without limited slip differential and 1995-1997 vehicles in the front left position.
As part of TrakMotive’s CV Axle Shaft line, this assembly is built for driveline replacement work where precise spline count, joint style, and ABS tone ring details matter. The NI-8054 is a direct-fit option for Nissan Altima front axle service and is backed by TrakMotive’s limited lifetime warranty.
- Fits 1995-1997 Nissan Altima, front left
- Fits 1993-1994 Nissan Altima, front left, w/o limited slip differential
- New CV axle shaft for driveline and axle repair
- Inboard male shaft connection with 29 inboard splines
- Conventional outboard joint with 27 outboard splines
- Neoprene boot material for joint protection
- ABS tone ring included; 44-tooth toothed ABS ring
- Axle nut included with M24 x 1.5 thread, 34.64 mm hex size
- Overall compressed length: 24.13 in. (613 mm)
This axle shaft is used to restore front-wheel drive operation when the original axle shows wear, vibration, clicking during turns, torn boots, or grease loss. It also addresses ABS-related concerns when the tone ring or ring tooth count must match the vehicle setup. This part cross-references Cardone New 66-6054 and Anchor 9745 for the same application.
Installation Notes
Verify the vehicle’s front-left application, spline count, axle nut thread size, and ABS configuration before installation. The included axle nut uses a 34.64 mm hex size and M24 x 1.5 thread. Confirm clearance, hub engagement, and joint seating during assembly, and inspect related seals and suspension components while the axle is removed.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent manufacturing control for replacement driveline parts.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Nissan | Altima | Automatic | Front Left | CV Axle Shaft |
| 1996 | Nissan | Altima | Automatic | Front Left | CV Axle Shaft |
| 1995 | Nissan | Altima | Automatic | Front Left | CV Axle Shaft |
| 1994 | Nissan | Altima | Automatic | Front Left | w/o Limited Slip Differential; CV Axle Shaft |
| 1993 | Nissan | Altima | Automatic | Front Left | w/o Limited Slip Differential; CV Axle Shaft |
