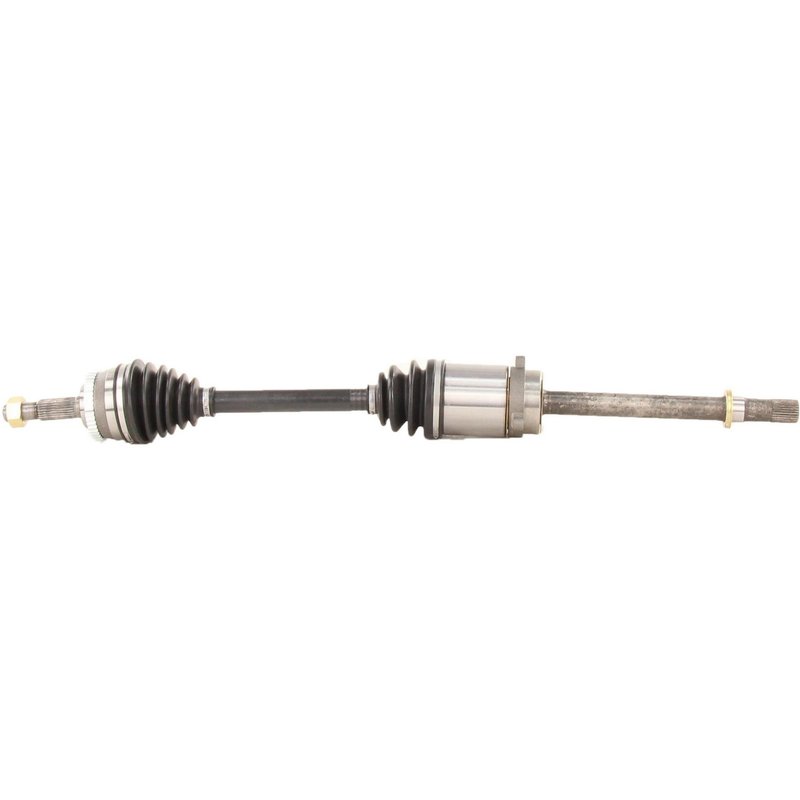

TrakMotive NI-8056 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8056 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.57 |
| Overall Compressed Length (mm) | 929 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 7 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Durable boot material helps protect the joint from wear and contamination.
ABS tone ring included. Includes a toothed ring with 44 teeth for ABS-equipped applications.
Cross-references Anchor 9742, Cardone New 66-6056 and Cardone Reman 60-6045 for the same application. See all 25.
CV Axle Shaft for Nissan Altima Front Right
Restore driveline performance with this TrakMotive CV axle shaft, part number NI-8056. It is built for front right applications on select Nissan Altima models and includes the axle nut and ABS tone ring details needed for the listed fitments.
Key Features
- TrakMotive CV axle shaft, part number NI-8056
- Fits 1993-1997 Nissan Altima, front right
- New axle assembly with a neoprene boot
- Male inboard shaft connection with 29 inboard splines
- Conventional outboard joint with 27 outboard splines
- Overall compressed length: 36.57 in. (929 mm)
- ABS tone ring included; 44-tooth toothed ring
- Axle nut included, M24 x 1.5 thread, 34.64 mm hex size
Product Details
The NI-8056 CV axle shaft is a direct driveline replacement for Nissan Altima front right applications across 1993-1997 model years. It is configured as a new axle shaft with a male inboard connection, conventional outboard joint, and neoprene boot construction. The included ABS tone ring and 44-tooth toothed ring support the listed ABS-equipped applications, while the axle nut specifications help match the original service requirements. This part cross-references Cardone New 66-6056 for the same application.
What This Part Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn or failing front right axle assembly
- ABS warning concerns related to a damaged tone ring on listed applications
Installation Notes and Tips
Verify spline count, axle length, and axle nut thread size before installation. Confirm whether the vehicle is equipped with limited slip differential on 1993-1994 Nissan Altima applications, since the fitment varies by configuration. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat failure. Use the correct torque procedure for the axle nut and follow the vehicle service manual for final tightening steps.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that it is produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent manufacturing control for the NI-8056 axle shaft.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Nissan | Altima | Automatic | Front Right | CV Axle Shaft |
| 1996 | Nissan | Altima | Automatic | Front Right | CV Axle Shaft |
| 1995 | Nissan | Altima | Automatic | Front Right | CV Axle Shaft |
| 1994 | Nissan | Altima | Automatic | Front Right | w/o Limited Slip Differential; CV Axle Shaft |
| 1994 | Nissan | Altima | Automatic | Front Right | w/ Limited Slip Differential; CV Axle Shaft |
| 1993 | Nissan | Altima | Automatic | Front Right | w/o Limited Slip Differential; CV Axle Shaft |
| 1993 | Nissan | Altima | Automatic | Front Right | w/ Limited Slip Differential; CV Axle Shaft |
