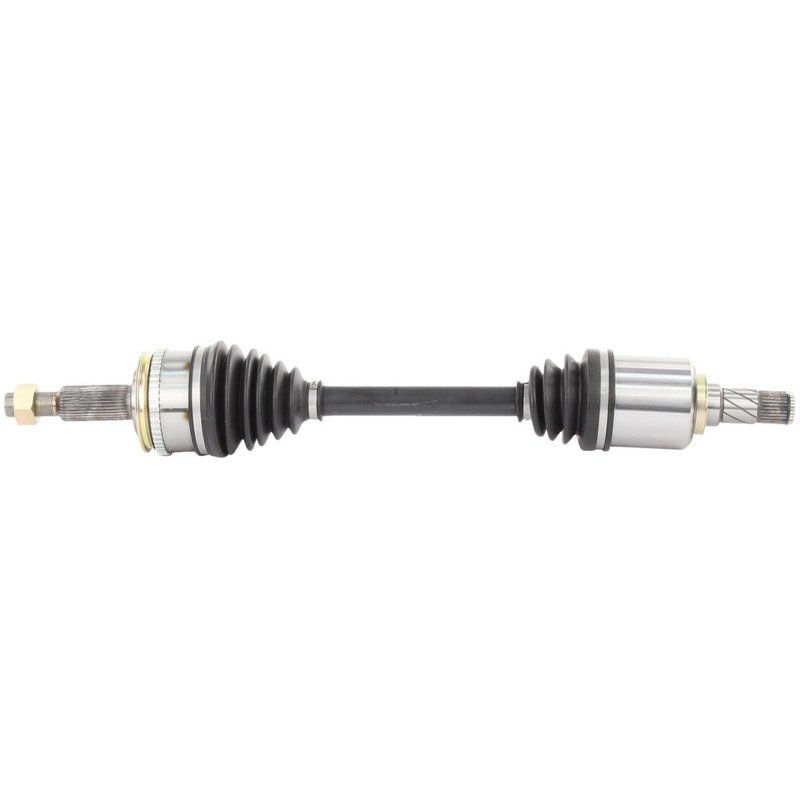

TrakMotive NI-8066 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8066

The TrakMotive CV Axle Shaft NI-8066 is engineered for reliable driveline performance in Mercury Quest and Nissan Villager vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Mercury Quest and Nissan Villager models
• Includes ABS tone ring with 50 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Comes with a standard locking hex axle nut (M24*1.5 thread size) included
• Overall compressed length of 26.93 inches (684 mm) for precise fitment

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line features a male inboard joint type with 29 splines and a conventional outboard joint with 32 splines, ensuring secure shaft connections. The included ABS tone ring is toothed with 50 teeth, supporting accurate ABS sensor readings. The axle nut is a hex head type measuring 1 3/8 inches (34.64 mm) across flats, with a height of 18 mm (5/7 inch) and a length of 40 mm (1 4/7 inch), providing a standard locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the axle shaft.

Application and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Mercury Quest and Nissan Villager
• Restoring proper ABS sensor function with included ABS tone ring
• Resolving axle shaft vibration or clicking noises during turns
• Fixing torn or leaking CV boots to prevent grease loss and contamination
• Addressing axle nut thread or locking issues for secure wheel attachment

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. Use proper torque specifications for the M24*1.5 axle nut to maintain secure locking. Inspect the CV boot for any damage during installation and replace if necessary. The included ABS tone ring should be aligned correctly to avoid sensor errors. Professional installation is recommended to ensure driveline integrity and safety.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft NI-8066 is a new, not remanufactured, component designed to meet or exceed OEM standards. Manufactured with quality materials including a durable neoprene boot and precision-machined splines, this axle shaft supports reliable vehicle operation. Warranty details should be confirmed with the product provider, as coverage may vary.
