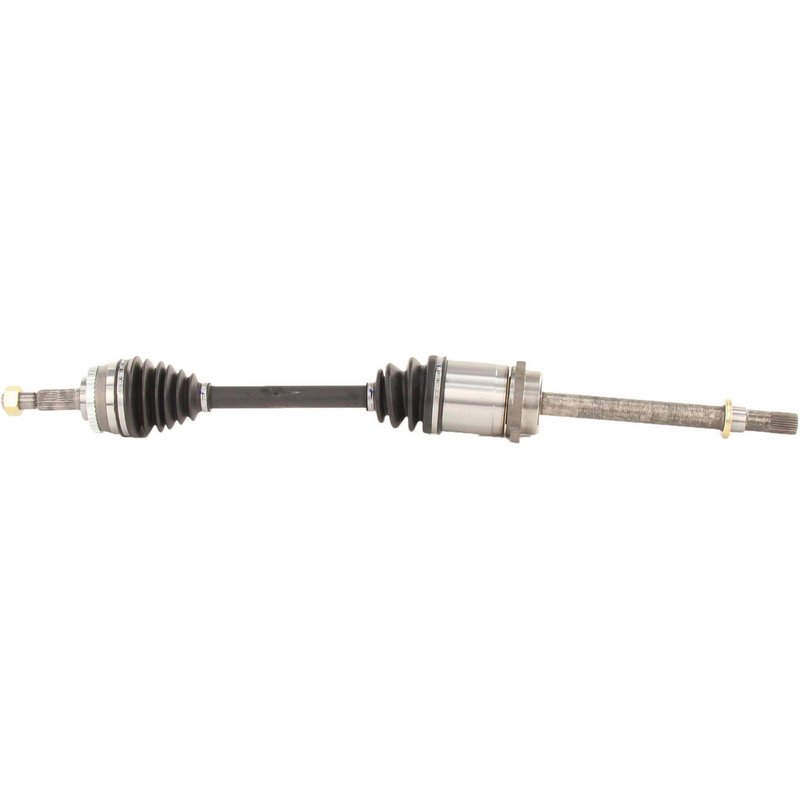

TrakMotive NI-8070 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8070 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.48 |
| Overall Compressed Length (mm) | 952 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 4 vehicles |
New axle shaft. Fresh replacement part for driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Anchor 9764, Cardone New 66-6170 and Cardone Reman 60-6169 for the same application. See all 25.
CV Axle Shaft for Nissan Altima Front Right
TrakMotive NI-8070 is a new CV axle shaft for the front right position on select 1998-2001 Nissan Altima models. It is built for direct replacement service with the correct spline count, ABS tone ring, and axle nut specifications for the listed application.
Key Features
- Fits 1998-2001 Nissan Altima, front right
- New CV axle shaft from TrakMotive
- 27 inboard splines and 27 outboard splines
- 44-tooth toothed ABS ring with tone ring included
- Neoprene boot material for driveline service
- Male inboard shaft connection and conventional outboard joint type
- Includes axle nut with M24 x 1.5 thread size
- Overall compressed length: 37.48 in (952 mm)
Product Details
The TrakMotive CV Axle Shaft brand line focuses on replacement driveline components built for specific vehicle fitment and OE-style service requirements. Part number NI-8070 is engineered for the front right side of the Nissan Altima and matches the listed axle dimensions, spline counts, and ABS configuration. This axle is intended for vehicles with the specified front-right application and uses a toothed ABS ring with 44 teeth, making it a direct-match option for the listed setup. This part cross-references Cardone New 66-6170 for the same application.
What This Axle Can Help Resolve
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or imbalanced front axle shaft
- Grease leakage from a torn or deteriorated CV boot
- ABS warning concerns related to a failed tone ring or axle sensor interface
- Driveline noise from excessive wear in the front right axle assembly
Installation Notes
Verify the vehicle’s front right application, spline count, ABS ring style, and axle nut thread size before installation. Confirm compressed length and joint style against the removed shaft to ensure proper alignment and fit. Inspect the hub, seals, and surrounding driveline components during replacement, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive lists NI-8070 as a new part and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Nissan | Altima | Manual | Front Right | CV Axle Shaft |
| 2000 | Nissan | Altima | Manual | Front Right | CV Axle Shaft |
| 1999 | Nissan | Altima | Manual | Front Right | CV Axle Shaft |
| 1998 | Nissan | Altima | Manual | Front Right | CV Axle Shaft |
