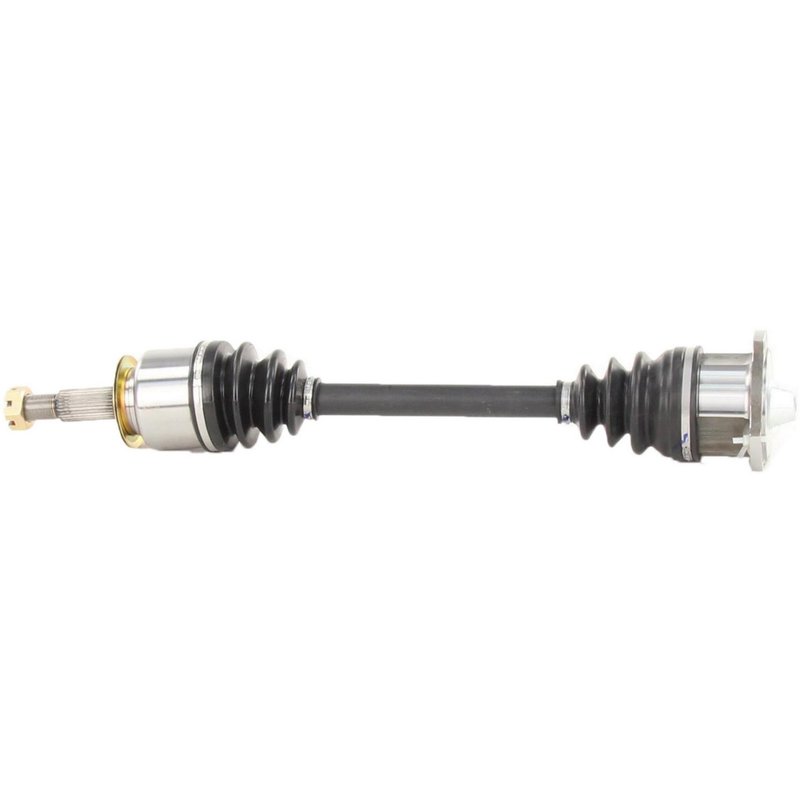

TrakMotive NI-8086 CV Axle Shaft - Rear Right
| Brand | TrakMotive NI-8086 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17.5 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.17 |
| Overall Compressed Length (mm) | 690 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 6 vehicles |
New axle shaft. Built with a neoprene boot for dependable CV joint protection.
Axle nut included. Hex nut with cotter pin locking for secure installation.
Flange connection. Flange-style inboard joint and conventional outboard joint.
Cross-references TrakMotive NI-8086, 40-20038 and 80-6304 for the same application. See all 8.
TrakMotive NI-8086 CV Axle Shaft
TrakMotive NI-8086 is a new CV axle shaft for the rear right position on select Nissan 240SX models. Built for 1989-1994 Nissan 240SX applications, this axle shaft supports driveline repair needs where a worn or damaged axle is causing noise, vibration, or loss of smooth power transfer.
Key Features
- New CV axle shaft for rear right fitment
- Overall compressed length: 27.17 in. (690 mm)
- 29 outboard splines
- Neoprene boot material
- Inboard joint type: flange
- Outboard joint type: conventional
- Axle nut included with M24 x 1.5 thread, hex head, and cotter pin locking type
- No ABS tone ring included
Product Details
The TrakMotive CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. NI-8086 is engineered for the rear right side of the Nissan 240SX and uses a flange-style inboard connection with a conventional outboard shaft connection. The neoprene boot helps protect the joint assembly, while the included axle nut supports a complete service-ready installation for the specified application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration or cruising
- Axle shaft play or looseness at the rear right corner
- Boot damage that has led to joint contamination
- Driveline noise from a failing rear axle assembly
Installation Notes and Tips
Fits 1989-1994 Nissan 240SX, rear right. Verify spline count, axle length, and flange-style connection before installation. Inspect the hub, seals, and surrounding suspension components for wear during service, and confirm axle nut thread size M24 x 1.5 matches the vehicle specification. Because this application does not use an ABS tone ring on the axle, confirm the vehicle’s braking configuration before ordering.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices for driveline components.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1994 | Nissan | 240SX | RWD | Rear Right | CV Axle Shaft |
| 1993 | Nissan | 240SX | RWD | Rear Right | CV Axle Shaft |
| 1992 | Nissan | 240SX | RWD | Rear Right | CV Axle Shaft |
| 1991 | Nissan | 240SX | RWD | Rear Right | CV Axle Shaft |
| 1990 | Nissan | 240SX | RWD | Rear Right | CV Axle Shaft |
| 1989 | Nissan | 240SX | RWD | Rear Right | CV Axle Shaft |
