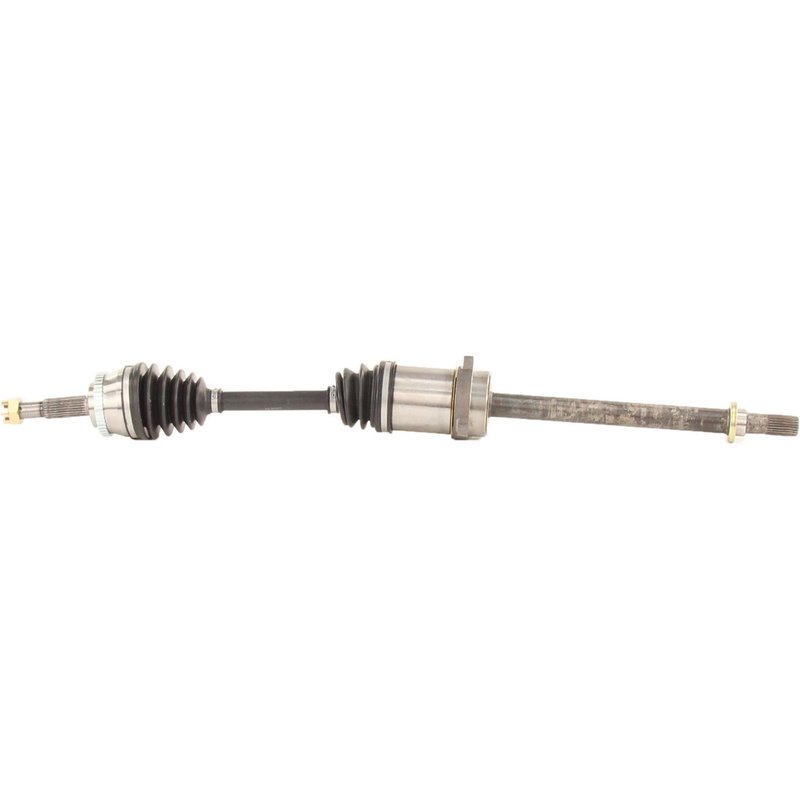

TrakMotive NI-8097 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8097

The TrakMotive CV Axle Shaft NI-8097 is engineered for reliable driveline performance in Nissan 200SX and Sentra models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Nissan 200SX and Sentra models
• Includes ABS tone ring with 42 toothed abs ring tooth count
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 36.81 inches (935 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components designed to meet OEM specifications. This line emphasizes durability and precise engineering, featuring components such as ABS tone rings and neoprene boots to maintain optimal driveline function. The NI-8097 model is part of this line, offering a balance of performance and fitment for Nissan vehicles requiring reliable CV axle replacements.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 25 splines on both inboard and outboard ends, ensuring secure shaft connection and smooth power transfer. The outboard joint uses a conventional connection style. The included ABS tone ring is toothed with 42 teeth, enhancing wheel speed sensor accuracy. The axle nut is a hex type, measuring 1 1/4 inches (32 mm) across flats, 6/7 inches (22 mm) in height, and 1 1/2 inches (37 mm) in length, with an M22x1.5 thread size and cotter pin locking for secure installation. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Nissan 200SX and Sentra
• Addresses issues with torn or leaking CV boots
• Resolves ABS sensor errors related to faulty tone rings
• Fixes axle shaft vibrations or clicking noises during turns
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

Ensure compatibility with Nissan 200SX and Sentra models before installation. Use the included hex axle nut with cotter pin locking to secure the axle shaft properly. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. It is recommended to inspect related suspension and drivetrain components during installation for optimal performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8097 is a new, OEM-quality replacement part designed to meet or exceed factory specifications. Manufactured with durable materials including neoprene boots and precision-machined components, it supports long-term reliability. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
