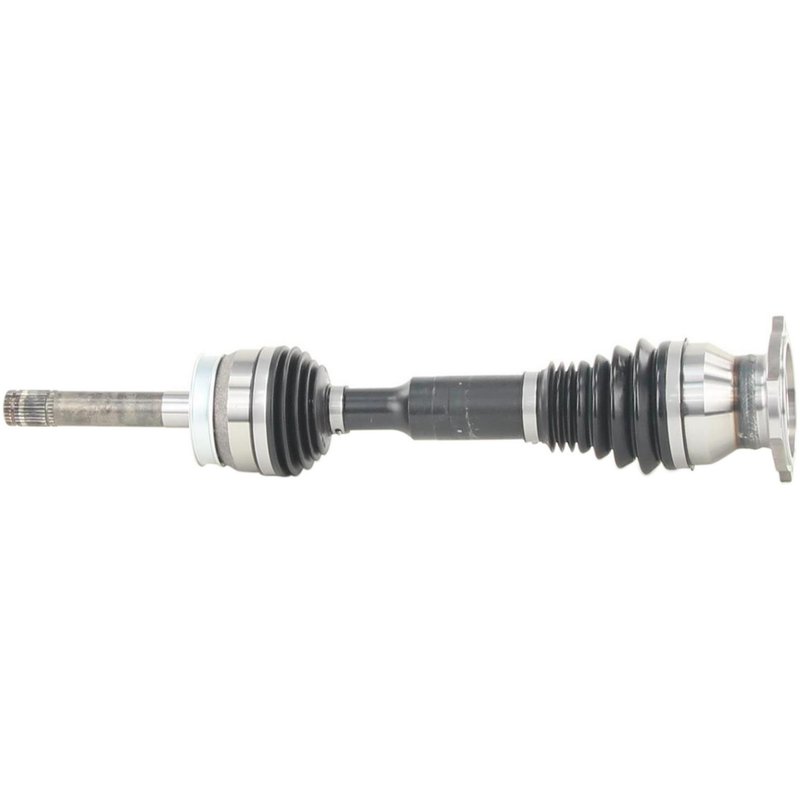

TrakMotive NI-8099XTT CV Axle Shaft - Front Left or Front Right

Extended Travel CV Axle for Nissan

TrakMotive NI-8099XTT is an extended travel CV axle shaft built for Nissan Frontier and Nissan Xterra front axle applications. It uses a sliding center bar to provide more suspension travel than a standard OE-style CV shaft, along with increased joint articulation for lifted or stock setups used on-road or off-road.

Key Features

• Extended Travel CV Axle Shaft from TrakMotive
• Sliding center bar provides up to 44 mm more travel than an OEM CV shaft
• CV joints allow up to 47 degrees of articulation versus a typical 23 degrees on OE joints
• Neoprene boot material
• New axle assembly with 6-bolt inboard flange connection
• 28-spline outboard shaft connection
• Overall compressed length: 22.05 in. (560 mm)
• No ABS tone ring included
• No axle nut included

Product Details

The TrakMotive Extended Travel CV Axle Shaft line is engineered for vehicles that need additional suspension movement without sacrificing driveline function. NI-8099XTT is designed around a sliding center bar and high-angle CV joint geometry, helping maintain axle engagement through greater suspension droop and articulation. This makes it a direct-fit driveline solution for Nissan Frontier and Nissan Xterra front right or front left applications listed below. This part cross-references Cardone New 66-6193 and Anchor 9700 for the same application.

What It Helps Address

• CV axle binding at increased suspension angles
• Driveline vibration caused by worn or overextended front axles
• Axle stress on lifted Nissan Frontier and Nissan Xterra setups
• Loss of articulation during off-road suspension travel
• Front axle replacement needs on stock-height vehicles with worn CV components

Installation Notes

• Fits 1998-2004 Nissan Frontier, front right and front left.
• Fits 2000-2004 Nissan Xterra, front right and front left.
• Always replace in pairs when servicing the front axle system.
• Verify spline count, flange style, and compressed length before installation.
• Confirm ABS and axle nut requirements separately, since neither is included.

Quality Assurance

TrakMotive manufactures this as a new extended travel CV axle shaft for driveline service where added articulation is required. NI-8099XTT is built to match the listed Nissan Frontier and Nissan Xterra front axle applications and to support higher-angle suspension movement than a standard OE CV shaft.
