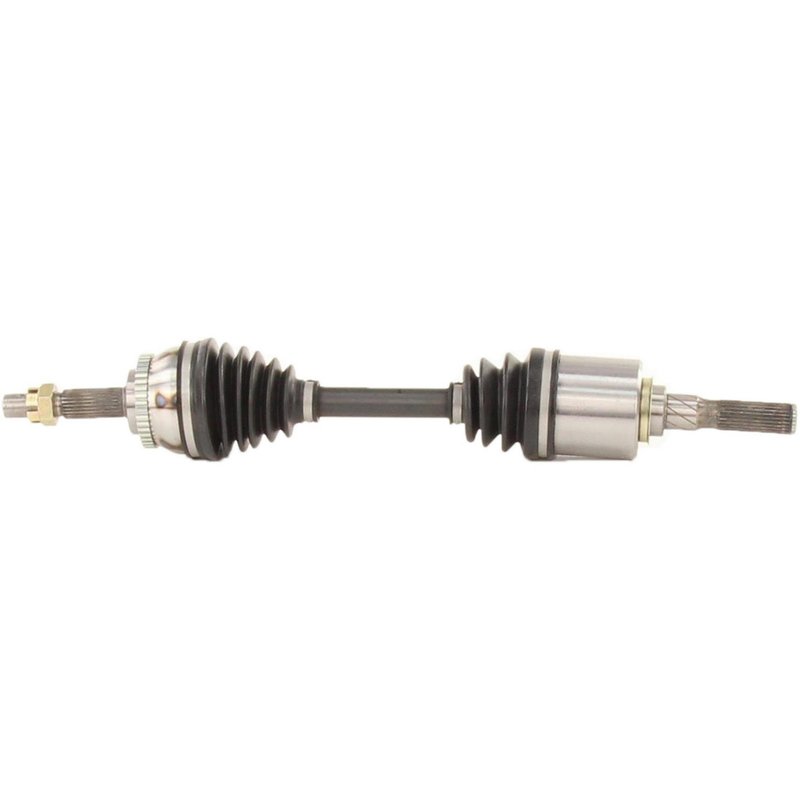

TrakMotive NI-8100 CV Axle Shaft - Front Left

Overview of the TrakMotive CV Axle Shaft NI-8100

The TrakMotive CV Axle Shaft NI-8100 is engineered for reliable driveline performance in Nissan 200SX and Sentra models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Nissan 200SX and Sentra models
• Includes a neoprene boot for enhanced joint protection
• Equipped with a 42-tooth ABS ring and included tone ring
• Features a hex head axle nut with cotter pin locking mechanism
• Overall compressed length of 24.53 inches (623 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes durability and precise engineering, including features such as ABS tone rings and secure axle nut designs. The NI-8100 model exemplifies these standards with its robust neoprene boot and reliable joint types, suitable for Nissan driveline applications.

Technical Specifications and Features

This CV axle shaft includes a 42-tooth toothed ABS ring with an included tone ring, ensuring accurate wheel speed sensor readings for ABS systems. The axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses an M22 x 1.5 thread size and locks securely with a cotter pin to prevent loosening. The neoprene boot material provides resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint features a male connection style with 25 splines, while the outboard joint is conventional with 25 splines as well. The overall compressed length of 24.53 inches (623 mm) ensures proper fitment within the driveline assembly.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Nissan 200SX and Sentra
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with cotter pin locking axle nut

Installation Notes and Tips

Ensure compatibility with your specific Nissan 200SX or Sentra model year before installation. Use proper torque specifications for the M22 x 1.5 axle nut and secure it with the included cotter pin to maintain safety. Inspect the axle shaft splines and joint connections for proper engagement during assembly. The neoprene boot should be handled carefully to avoid damage during installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8100 is a new, OEM-quality replacement part designed to meet or exceed factory standards. It includes an ABS tone ring for accurate sensor operation and a secure locking axle nut. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in Nissan 200SX and Sentra vehicles.
