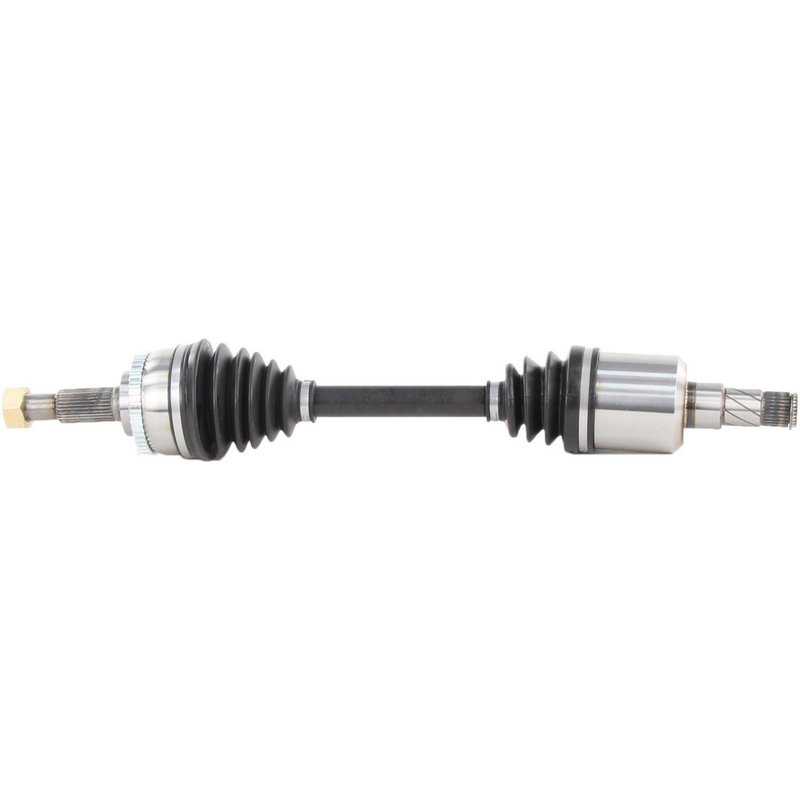

TrakMotive NI-8106 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8106 for Nissan Maxima

The TrakMotive CV Axle Shaft NI-8106 is designed specifically for Nissan Maxima models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Nissan Maxima vehicles
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Axle nut included with hex head type and standard locking
• Overall compressed length of 25.12 inches (638 mm)
• Male inboard joint and conventional outboard joint types
• 29 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and reliable driveline components for various vehicle applications. The NI-8106 model is part of this line, engineered to meet OEM specifications for Nissan Maxima vehicles. This ensures proper fit and function, including the integration of ABS tone rings and durable neoprene boots to protect joint components.

Technical Specifications and Features

The NI-8106 CV axle shaft includes a 44-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 3/8 inches (34.64 mm) across flats, with a height of 5/7 inches (18 mm) and a length of 1 4/7 inches (40 mm). It features a standard locking mechanism and thread size M24*1.5. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the CV joint. Both the inboard and outboard shafts have 29 splines, with the inboard joint being male type and the outboard joint conventional, ensuring secure connections and smooth power transfer.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Nissan Maxima
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive NI-8106 CV axle shaft, verify compatibility with your Nissan Maxima model year. Use the included axle nut with the specified M24*1.5 thread size and torque to manufacturer specifications. Inspect the ABS tone ring and sensor alignment during installation to maintain proper ABS function. Ensure the neoprene boot is properly seated to prevent contamination and premature joint failure.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive products undergo quality control to ensure durability and fitment accuracy. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
