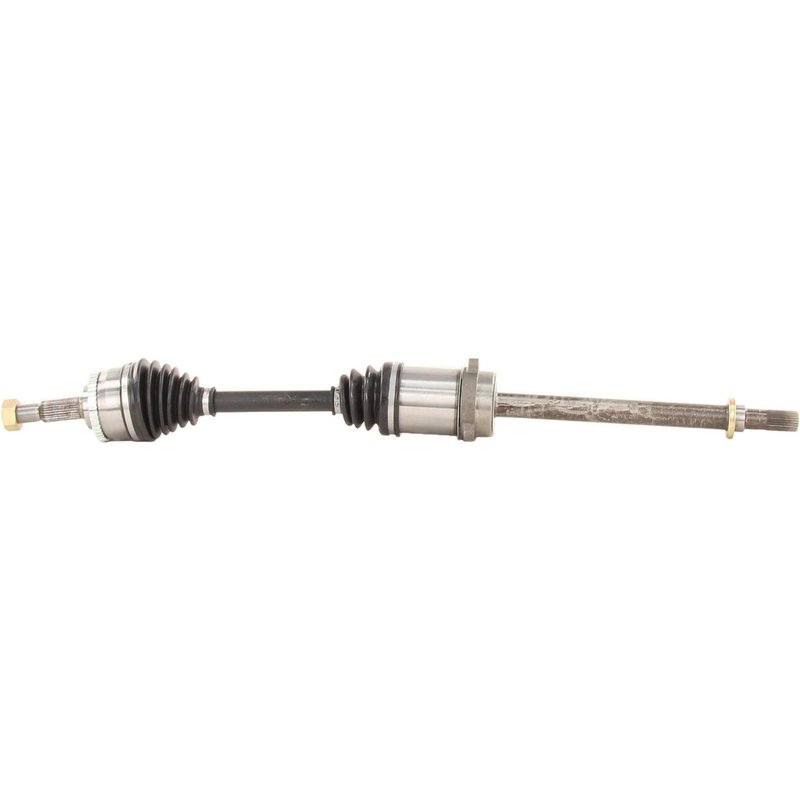

TrakMotive NI-8116 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8116 for Infiniti G20

The TrakMotive CV Axle Shaft NI-8116 is engineered specifically for the Infiniti G20, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Infiniti G20 models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut included with M24*1.5 thread size
• Overall compressed length of 36.93 inches (938 mm)
• Inboard joint type: Male with 25 splines
• Outboard joint type: Conventional with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft NI-8116 is part of that line, designed to provide consistent performance and durability for vehicles like the Infiniti G20. The inclusion of a toothed ABS ring and neoprene boot material highlights the attention to detail in maintaining vehicle safety and longevity.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS ring that is toothed and includes the ABS tone ring for proper sensor operation. The axle nut is a hex head type, measuring 1 3/8 inches (34.64 mm) across the flats, with a height of 18 mm (5/7 inch) and a length of 40 mm (1 4/7 inch). The axle nut uses a standard locking type and is included with the part. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 27 splines. The boot is made from neoprene, providing resistance to wear and environmental factors. The overall compressed length of the shaft is 36.93 inches (938 mm), ensuring proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Infiniti G20
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included hex axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8116 on an Infiniti G20, ensure the axle nut is torqued to manufacturer specifications using the included hex nut. Verify the ABS tone ring is properly aligned with the sensor to maintain ABS functionality. Inspect the neoprene boot for any damage during installation to prevent premature failure. It is recommended to replace axle nuts with the new ones provided to maintain secure fastening.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. The inclusion of the ABS tone ring and durable neoprene boot reflects the quality focus of the TrakMotive CV Axle Shaft line. Warranty information is provided by the manufacturer and should be reviewed at the time of purchase to confirm coverage details.
