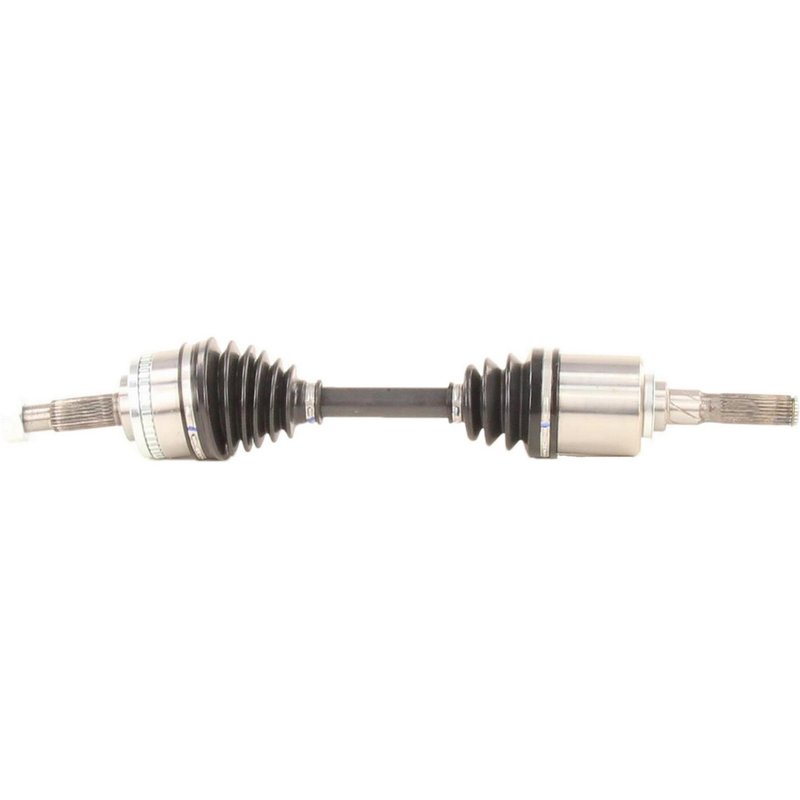

TrakMotive NI-8123 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8123 for Infiniti G20

The TrakMotive CV Axle Shaft NI-8123 is designed specifically for the Infiniti G20, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Infiniti G20 models
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with M24*1.5 thread size
• Overall compressed length of 24.76 inches (629 mm)
• Inboard joint type: Male with 25 splines
• Outboard joint type: Conventional with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. The NI-8123 model is part of this line, engineered to meet OEM specifications for the Infiniti G20. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like the axle nut to facilitate installation and long-term performance.

Technical Specifications and Features

This CV axle shaft features a toothed ABS ring with 42 teeth, which is essential for accurate wheel speed sensor readings. The included ABS tone ring supports the vehicle's anti-lock braking system functionality. The axle nut is a hex head type, measuring 1 3/8 inches (34.64 mm) across flats, with a height of 18 mm (5/7 inch) and a length of 40 mm (1 4/7 inch). The nut uses a standard locking type and a thread size of M24*1.5, ensuring secure fastening. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joint. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 27 splines, both designed for proper shaft connection and torque transfer. The overall compressed length of 24.76 inches (629 mm) matches the OEM requirements for the Infiniti G20.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Infiniti G20
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8123 on an Infiniti G20, verify the spline counts and joint types match the vehicle specifications. Use the included hex head axle nut with the correct torque settings to ensure proper fastening. Inspect the neoprene boot for any damage during installation to maintain joint protection. It is recommended to replace axle components in pairs to maintain balanced driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8123 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware for installation and is manufactured with quality materials such as neoprene boots and precision-machined splines. Warranty information should be confirmed with the distributor or manufacturer to ensure coverage details.
