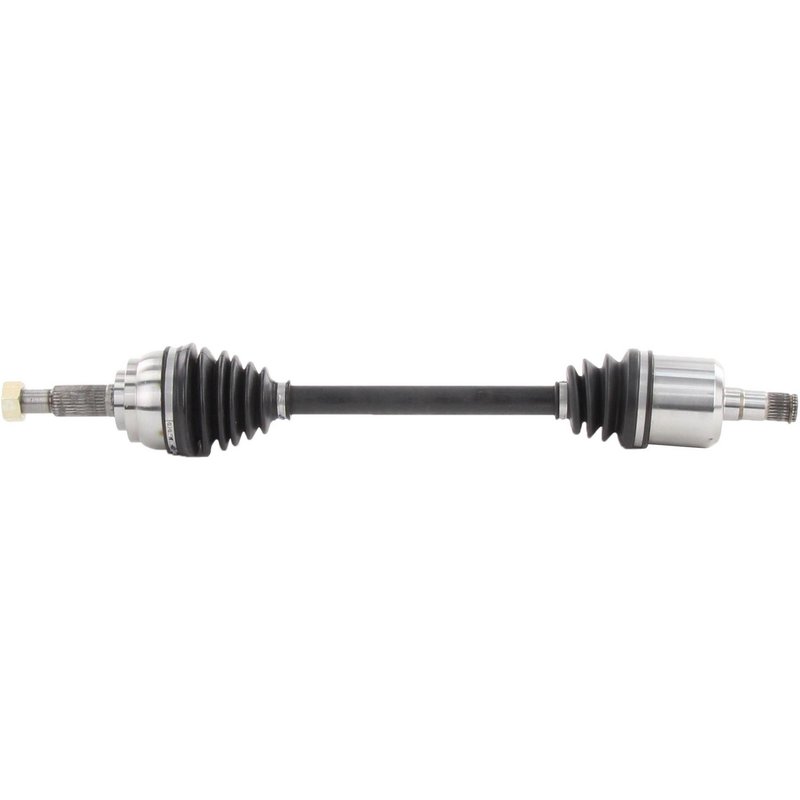

TrakMotive NI-8146 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8146 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.64 |
| Overall Compressed Length (mm) | 702 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 6 vehicles |
New axle shaft. Fresh replacement part for restoring driveline performance.
Neoprene boot. Flexible material helps protect the joint from wear.
Axle nut included. Ready for installation with the correct hardware.
Cross-references Cardone New 66-6240, Cardone Reman 60-6240 and TrakMotive NI-8146 for the same application. See all 15.
CV Axle Shaft for Nissan Quest
TrakMotive NI-8146 is a new CV axle shaft for the front left position on select 2004-2009 Nissan Quest models. It is built for driveline service where a worn axle can cause vibration, clicking, or loss of smooth power transfer.
This TrakMotive CV Axle Shaft line focuses on direct-fit replacement coverage with application-specific dimensions and joint configurations. For the Nissan Quest, NI-8146 is a front left axle shaft with a 27.64 in. overall compressed length, 26 inboard splines, and 29 outboard splines.
Key Features
- Fits 2004-2009 Nissan Quest, front left
- TrakMotive part number NI-8146
- New CV axle shaft for driveline repair
- Male inboard shaft connection style
- Conventional outboard joint type
- Neoprene boot material
- Axle nut included with standard locking type
- 34.64 mm axle nut hex size, M24 x 1.5 thread
- No ABS tone ring included
Product Details
NI-8146 is a CV axle shaft engineered for the front left side of the Nissan Quest. It uses a male inboard joint and conventional outboard joint design, with 26 inboard splines and 29 outboard splines for application-specific fitment. The axle measures 702 mm (27.64 in.) overall compressed length and includes a neoprene boot for joint protection. This part cross-references Cardone New 66-6240 for the same application.
Common Issues This Part Can Address
- Clicking or popping noises during turns
- Vibration from a worn or damaged axle shaft
- Grease leakage from a torn CV boot
- Excessive play in the front left driveline
- Loss of smooth power delivery to the wheel
Installation Notes and Tips
Verify spline count, axle nut thread size, and compressed length before installation. Confirm front left placement on the vehicle and inspect related components such as the hub, seals, and suspension hardware for wear before reassembly. Torque the axle nut to the vehicle manufacturer’s specification after installation.
Quality Assurance
TrakMotive states this axle shaft is a new part backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Nissan | Quest | Front Left | CV Axle Shaft |
| 2008 | Nissan | Quest | Front Left | CV Axle Shaft |
| 2007 | Nissan | Quest | Front Left | CV Axle Shaft |
| 2006 | Nissan | Quest | Front Left | CV Axle Shaft |
| 2005 | Nissan | Quest | Front Left | CV Axle Shaft |
| 2004 | Nissan | Quest | Front Left | CV Axle Shaft |
