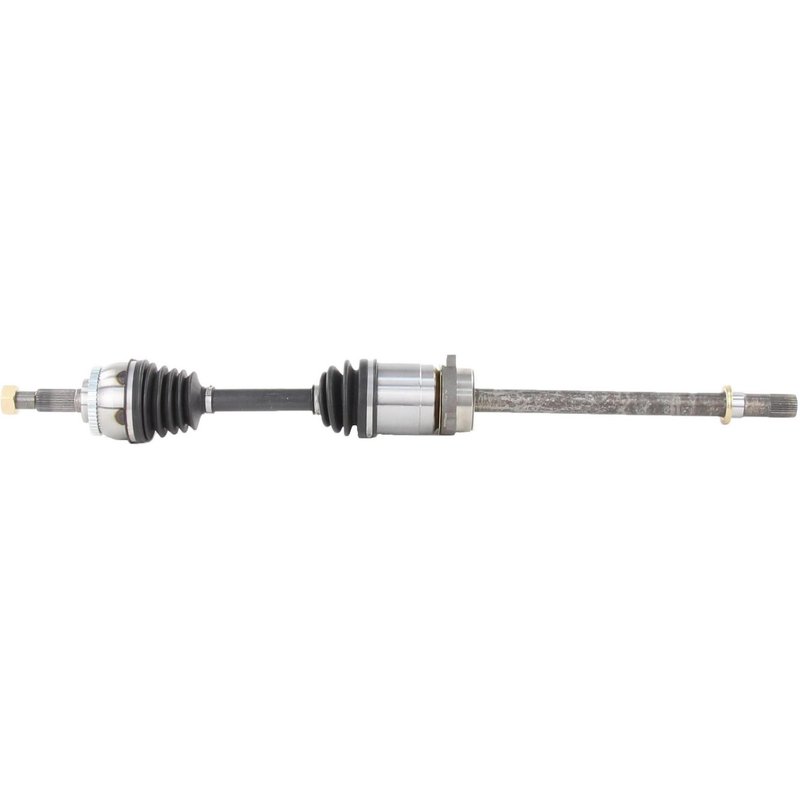

TrakMotive NI-8147 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8147

The TrakMotive CV Axle Shaft NI-8147 is engineered for reliable driveline performance in select INFINITI and Nissan vehicles. Designed specifically for models like the INFINITI I30 and Nissan Maxima, this new CV axle shaft ensures precise fitment and durability.

• Compatible with INFINITI I30 and Nissan Maxima
• Includes ABS tone ring with 46 toothed ring teeth
• Neoprene boot material for enhanced protection
• Standard locking hex axle nut included (M24*1.5 thread size)
• Overall compressed length of 38.07 inches (967 mm)
• 29 splines on both inboard and outboard joints

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft NI-8147 features a toothed ABS ring with 46 teeth, which is included to maintain proper ABS sensor function. The axle nut is a standard locking type with a hex head measuring 1 3/8 inches (34.64 mm) across flats and a height of 5/7 inches (18 mm). The axle nut length is 1 4/7 inches (40 mm), ensuring secure fastening. The neoprene boot material provides resistance to wear and environmental factors, protecting the CV joint from contaminants. Both the inboard and outboard joints have 29 splines, with the inboard joint designed as a male type and the outboard joint as conventional, matching the original equipment specifications. The overall compressed length of 38.07 inches (967 mm) fits the driveline geometry of the specified vehicles.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering direct-fit replacement components for driveline and axle systems. This line emphasizes compatibility with original equipment specifications, including precise spline counts, boot materials, and ABS ring configurations. The NI-8147 model is part of this line, providing a new, remanufactured-quality axle shaft designed to meet the demands of INFINITI and Nissan vehicles requiring reliable CV joint performance.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on INFINITI I30 and Nissan Maxima
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included standard locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8147, verify compatibility with your vehicle’s make and model. Use the included axle nut with the specified M24*1.5 thread size and torque to manufacturer specifications. Inspect the ABS sensor and wiring during installation to ensure proper function with the included toothed ABS ring. Handle the neoprene boot carefully to avoid damage during assembly. Proper alignment of the inboard male joint and outboard conventional joint is essential for smooth driveline operation.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet or exceed OEM standards for fit and function. The inclusion of the ABS tone ring and standard locking axle nut supports reliable vehicle operation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in compatible INFINITI and Nissan vehicles.
