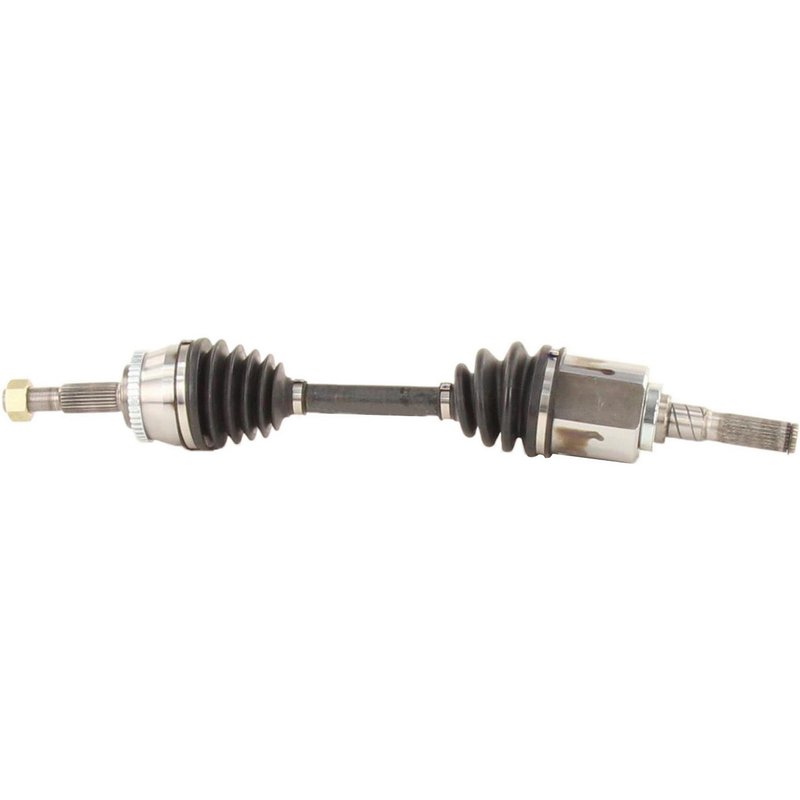

TrakMotive NI-8160 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8160 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 42 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.88 |
| Overall Compressed Length (mm) | 632 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 2 vehicles |
New axle shaft. Fresh replacement part for restoring driveline performance.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring and 42 teeth for ABS applications.
Cross-references Cardone New 66-6207, Cardone Reman 60-6207 and TrakMotive NI-8160 for the same application. See all 19.
TrakMotive NI-8160 CV Axle Shaft
The TrakMotive NI-8160 is a new CV axle shaft for the front left position on select Nissan Sentra models. It is built for 2000-2001 Nissan Sentra applications with a limited slip differential and includes the axle nut and ABS tone ring details needed for the listed configuration.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8160
- Fits 2000-2001 Nissan Sentra, front left
- Application note: w/ limited slip differential
- New axle shaft with 25 inboard splines and 25 outboard splines
- Overall compressed length: 24.88 in. (632 mm)
- Neoprene boot material
- ABS tone ring included with 42-tooth toothed ring
- Axle nut included; M22 x 1.5 thread, 32 mm hex size, cotter pin locking type
Product Details
TrakMotive CV Axle Shaft NI-8160 is a direct-fit driveline replacement for the front left side of the Nissan Sentra in the confirmed 2000-2001 fitment range. The axle uses a male inboard shaft connection and a conventional outboard joint type, with a compressed length of 24.88 inches to match the listed application. This part cross-references Cardone New 66-6207 and Cardone Reman 60-6207 for the same application.
The TrakMotive CV Axle Shaft line is built for replacement work where accurate spline count, joint style, and ABS ring details matter. For Nissan Sentra front axle service, NI-8160 provides the specified configuration for vehicles equipped with a limited slip differential.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a damaged tone ring on the axle
- Driveline noise caused by spline or joint wear
Installation Notes and Tips
- Verify the vehicle is a 2000-2001 Nissan Sentra, front left, with limited slip differential before installation.
- Confirm axle nut thread size, hex size, and locking style against the removed part.
- Inspect hub, seals, and surrounding suspension components for wear before installing the new axle.
- Use the included axle nut only if it matches the vehicle specification and service procedure.
- Check ABS sensor and tone ring alignment after installation.
Quality Assurance
TrakMotive lists this CV axle shaft as a new replacement part backed by a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for driveline components.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Nissan | Sentra | FWD | 2.0L | L4 | Front Left | w/ Limited Slip Differential; CV Axle Shaft |
| 2000 | Nissan | Sentra | FWD | 2.0L | L4 | Front Left | w/ Limited Slip Differential; CV Axle Shaft |
