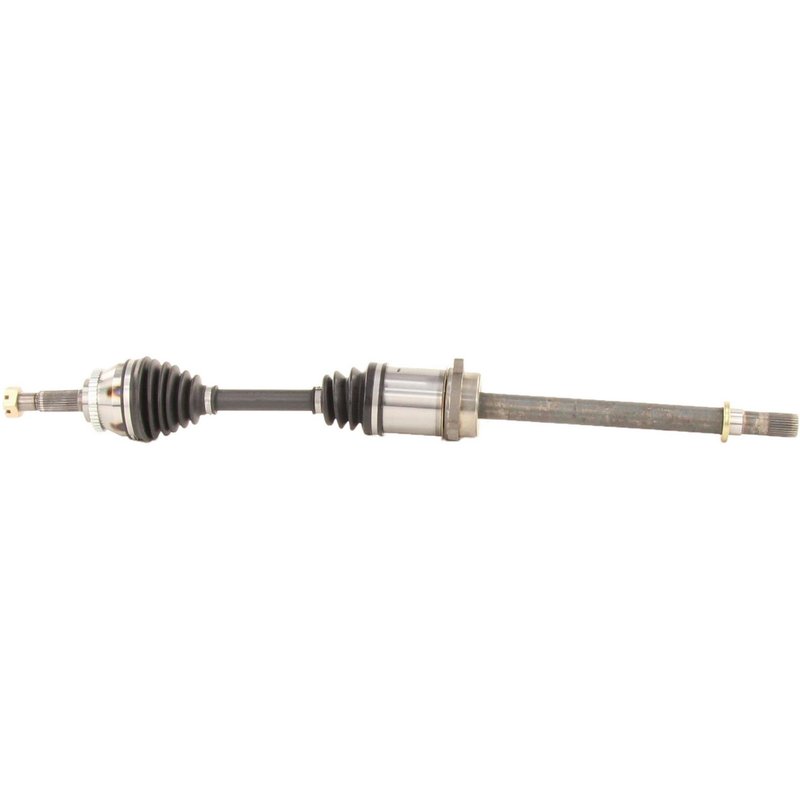

TrakMotive NI-8164 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8164 for Nissan Sentra

The TrakMotive CV Axle Shaft NI-8164 is engineered specifically for Nissan Sentra models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fit and function for your vehicle's CV components.

• Compatible with Nissan Sentra models
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for durability and protection
• Comes with a hex head axle nut featuring cotter pin locking
• Overall compressed length of 37.52 inches (953 mm)
• Inboard joint type: Male with 29 splines
• Outboard joint type: Conventional with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This line emphasizes quality materials and accurate fitment, ensuring that each CV axle shaft, including the NI-8164, maintains vehicle stability and smooth power transfer for Nissan Sentra vehicles.

Technical Specifications and Features

The NI-8164 CV Axle Shaft features a neoprene boot designed to resist wear and environmental damage, extending the life of the joint. The ABS tone ring included has 42 teeth and a toothed design, which works with the vehicle’s ABS system for accurate wheel speed monitoring. The axle nut is a hex head type measuring 35.5 mm across flats, 17.5 mm in height, and 41 mm in length, secured with a cotter pin locking mechanism to prevent loosening during operation. The inboard joint uses a male connection style with 29 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with Nissan Sentra driveline components. The overall compressed length of 37.52 inches (953 mm) matches factory specifications for proper installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Nissan Sentra
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive NI-8164 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to maintain safety. Verify the ABS tone ring is properly seated to avoid sensor errors. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Nissan Sentra models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8164 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in Nissan Sentra driveline applications.
