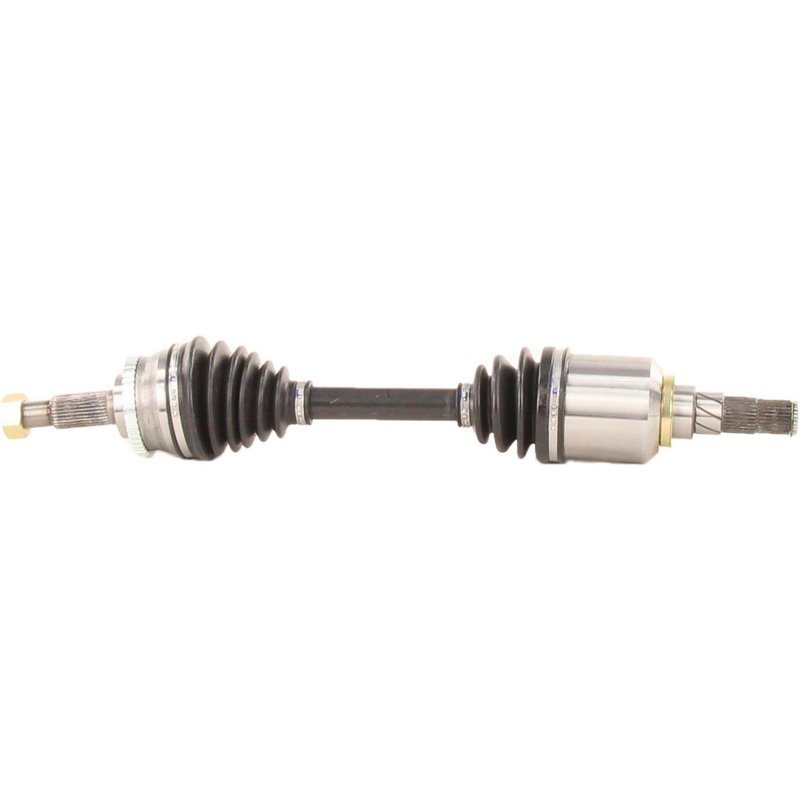

TrakMotive NI-8177 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8177 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29/31 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.31 |
| Overall Compressed Length (mm) | 643 |
| Product line | CV Axle Shaft |
| Fits | INFINITI and Nissan · 3 vehicles |
New CV axle shaft. Built with a neoprene boot for dependable driveline protection.
ABS tone ring included. Toothed ring with 44 teeth for integrated wheel speed sensing.
Axle nut included. Supplied with a hex nut for a complete replacement.
Cross-references Cardone New 66-6196, Cardone Reman 60-6196 and Hayden 5059 for the same application. See all 21.
CV Axle Shaft for Infiniti I30 and Nissan Maxima
TrakMotive NI-8177 is a new CV axle shaft for front left applications on select 2000-2001 Infiniti I30 and 2001 Nissan Maxima models with a limited slip differential. It is built as a direct driveline replacement with the correct spline, joint, and ABS tone ring details for the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8177
- New axle shaft, not remanufactured
- Front left position
- ABS tone ring included with 44-tooth toothed ring
- Male inboard shaft connection with conventional outboard joint
- Boot material: neoprene
- Axle nut included; M24 x 1.5 thread, 34.64 mm hex size
- Overall compressed length: 25.31 in. (643 mm)
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
TrakMotive NI-8177 is a CV axle shaft engineered for the front left side of the 2000-2001 Infiniti I30 and 2001 Nissan Maxima with limited slip differential. The axle includes a toothed ABS ring with 44 teeth and a neoprene boot, along with the specified axle nut and shaft connection details needed for the listed fitments. This part cross-references Cardone New 66-6196 and Cardone Reman 60-6196 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn front left driveline assembly
- ABS warning concerns tied to a damaged tone ring or axle assembly
Installation Notes
Verify the vehicle’s limited slip differential configuration, front left position, spline count, and axle nut thread size before installation. Confirm ABS ring style and tooth count against the original axle, especially on vehicles with ABS-related driveline differences. Always compare the removed axle to NI-8177 for overall compressed length and joint style before final assembly.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:1007 and TS 16949:2009 certified quality systems. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2001 | INFINITI | I30 | — | Front Left | w/ Limited Slip Differential; CV Axle Shaft |
| 2001 | Nissan | Maxima | Automatic | Front Left | w/ Limited Slip Differential; CV Axle Shaft |
| 2000 | INFINITI | I30 | — | Front Left | w/ Limited Slip Differential; CV Axle Shaft |
