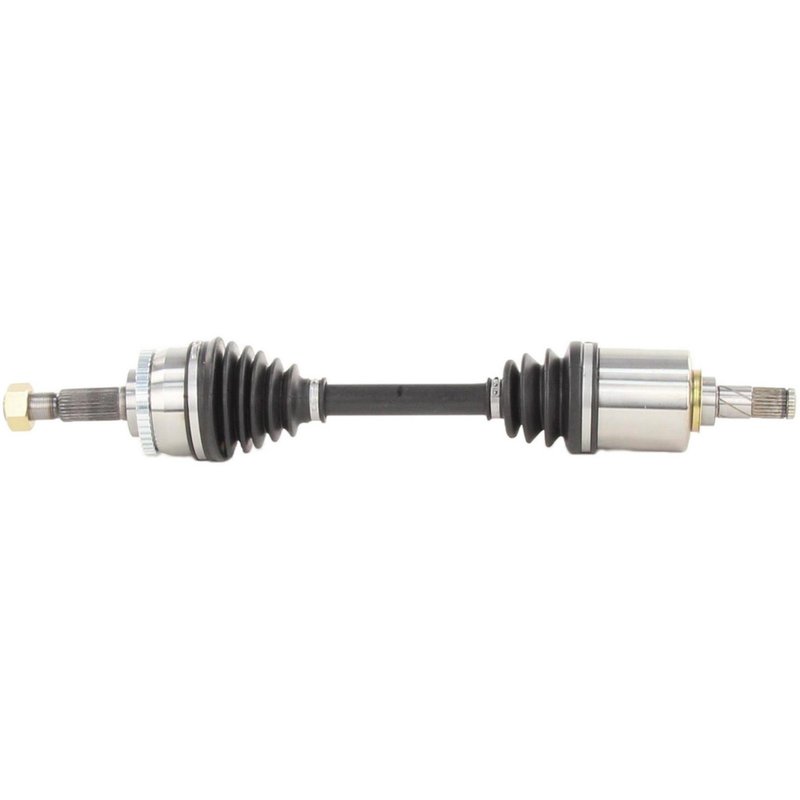

TrakMotive NI-8178 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8178 for Infiniti G20

The TrakMotive CV Axle Shaft NI-8178 is engineered specifically for the Infiniti G20, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications and ensure smooth power transfer from the transmission to the wheels.

• Compatible with Infiniti G20 models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for durability and protection
• Comes with a standard locking hex axle nut (M24*1.5 thread size)
• Overall compressed length of 24.51 inches (622.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed for precise fit and function. This line includes shafts with integrated ABS tone rings and durable neoprene boots to protect joints from contaminants. The NI-8178 model features a male inboard joint and a conventional outboard joint, ensuring compatibility with the Infiniti G20’s driveline system.

Technical Specifications and Features

The NI-8178 CV axle shaft includes a 44-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The axle nut is a hex head type, measuring 1 3/8 inches (34.64 mm) across flats, with a height of 18 mm (5/7 inch) and a length of 40 mm (1 4/7 inch). The axle nut uses a standard locking mechanism and is included with the shaft. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the CV joints. The inboard joint is male type with 25 splines, while the outboard joint is conventional with 27 splines, matching the original equipment specifications. The overall compressed length of 24.51 inches (622.5 mm) ensures proper fitment within the Infiniti G20’s driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Infiniti G20
• Restores proper ABS sensor function with included tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boots
• Addresses vibration or driveline imbalance issues related to axle shaft failure

Installation Notes and Tips

When installing the TrakMotive NI-8178 CV axle shaft, ensure the axle nut is torqued to the manufacturer’s specifications using the included hex nut. Verify the ABS tone ring is properly aligned with the wheel speed sensor to maintain accurate ABS function. Inspect the neoprene boots for any damage during installation to prevent premature joint failure. It is recommended to replace axle nuts with the new ones provided to ensure secure locking and safety.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards for fit and function. The inclusion of the ABS tone ring and durable neoprene boots reflects attention to quality and reliability. Warranty details are provided by TrakMotive and should be confirmed at the time of purchase to ensure coverage.
