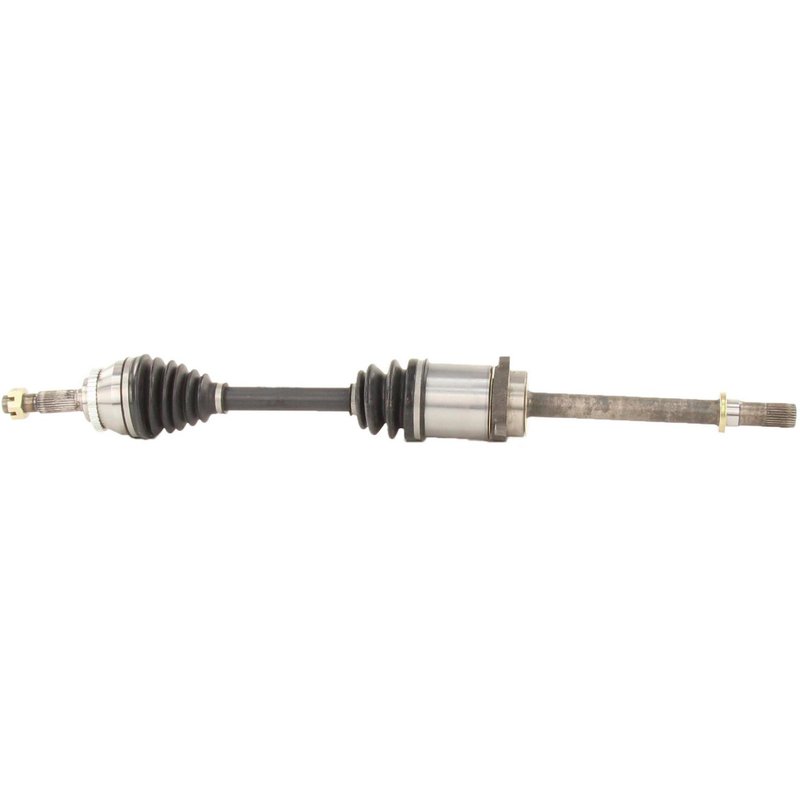

TrakMotive NI-8193 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8193 for Nissan Sentra

The TrakMotive CV Axle Shaft NI-8193 is engineered specifically for Nissan Sentra models, providing reliable driveline performance. Designed with precision, this new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Nissan Sentra vehicles
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for enhanced durability
• Comes with a hex head axle nut featuring cotter pin locking
• Overall compressed length of 36.46 inches (926 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet or exceed OEM specifications. This line emphasizes precise fitment and reliable performance, making it suitable for driveline repairs and replacements on compatible vehicles such as the Nissan Sentra. The NI-8193 part is a new, not remanufactured, component ensuring fresh materials and construction.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 29 splines and a conventional outboard joint with 27 splines, ensuring secure shaft connections. The included ABS tone ring is toothed with 42 teeth, supporting accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut is a hex head type measuring 35.5 mm across flats, 17.5 mm in height, and 41 mm in length, with an M24x1.5 thread size and cotter pin locking mechanism for secure installation.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Nissan Sentra
• Restoring proper ABS sensor function with included tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing torn or leaking CV boots to prevent joint failure
• Ensuring secure axle nut fastening with cotter pin locking

Installation Notes and Tips

When installing the TrakMotive NI-8193 CV axle shaft, verify compatibility with your Nissan Sentra model year and drivetrain configuration. Use the included axle nut and ensure the cotter pin is properly installed to prevent loosening. Inspect the neoprene boot for any damage during installation and apply appropriate grease to the joints. Proper torque specifications should be followed to maintain driveline integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8193 is a new component manufactured to meet industry standards for durability and performance. It includes an ABS tone ring to maintain sensor accuracy and comes with a securely locking axle nut. While specific warranty details are not provided, TrakMotive products typically adhere to quality control processes to ensure reliable operation in Nissan Sentra vehicles.
