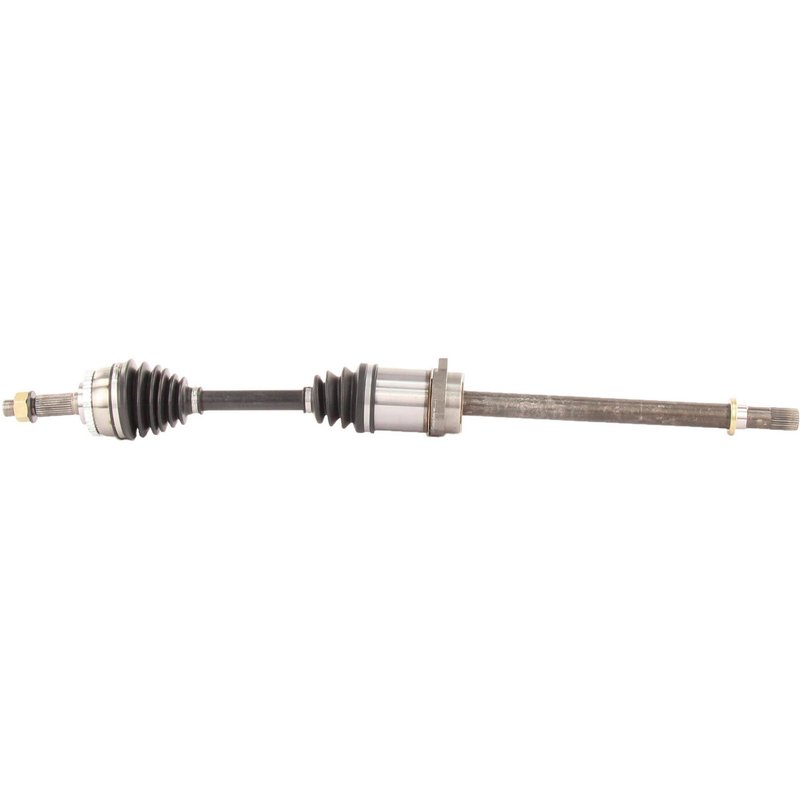

TrakMotive NI-8201 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8201 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 39.17 |
| Overall Compressed Length (mm) | 995 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 2 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
ABS tone ring included. Toothed ring is built in for ABS-equipped applications.
OE-style fitment. Includes axle nut and uses standard connection styles for easier installation.
Cross-references TrakMotive NI-8201, 40-18278S and 80-4695 for the same application. See all 14.
TrakMotive CV Axle Shaft for Nissan Maxima
TrakMotive NI-8201 is a new CV axle shaft for the front right position on 2002-2003 Nissan Maxima models. It is built for direct replacement service with the correct spline count, ABS tone ring, and axle nut specifications for the listed application.
Key Features
- Fits 2002-2003 Nissan Maxima, front right
- New CV axle shaft for driveline and axle service
- 29 inboard splines and 29 outboard splines
- 44-tooth toothed ABS ring with tone ring included
- Neoprene boot material for CV joint protection
- Includes axle nut with M24 x 1.5 thread size
- Overall compressed length: 995 mm (39.17 in)
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Nissan Maxima and matches the listed OE-style dimensions and connection types for the application. The inboard side uses a male shaft connection, while the outboard side uses a conventional joint design. TrakMotive identifies this part as a new replacement axle, and the included ABS tone ring supports vehicles equipped with ABS. ABS axles also fit non-ABS applications unless otherwise noted.
TrakMotive NI-8201 is part of the CV Axle Shaft line and is backed by the brand’s manufacturing standards for driveline components. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged CV boot
- Excessive play in the front right driveline assembly
- ABS-related fitment needs when replacing a worn axle assembly
Installation Notes and Tips
Verify spline count, axle length, and axle nut thread size before installation. Confirm front right fitment on 2002-2003 Nissan Maxima models and inspect related hub, seal, and suspension components during replacement. Use the included axle nut only if it matches the vehicle’s specification and torque requirements.
Quality Assurance
TrakMotive states that this axle shaft is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. The part is covered by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2003 | Nissan | Maxima | Manual | Front Right | CV Axle Shaft |
| 2002 | Nissan | Maxima | Manual | Front Right | CV Axle Shaft |
