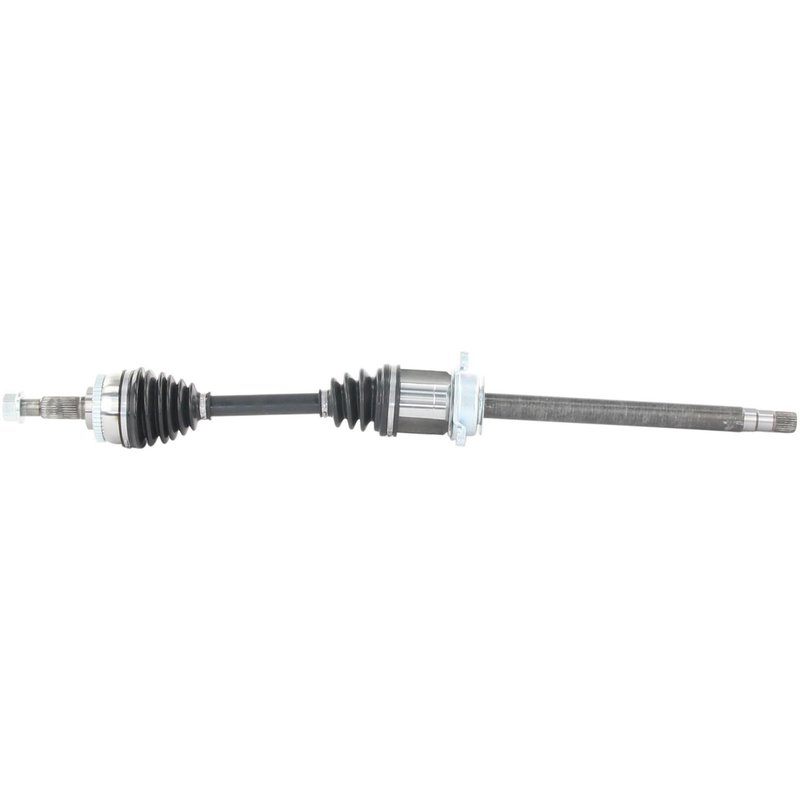

TrakMotive NI-8202 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8202

The TrakMotive CV Axle Shaft NI-8202 is engineered for Nissan Altima and Maxima models, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fit and function for your vehicle's front-wheel drive system.

• Compatible with Nissan Altima and Maxima
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for durability and protection
• Standard locking hex axle nut included (M24*1.5 thread size)
• Overall compressed length of 38.39 inches (975 mm)
• Male inboard joint with 26 splines and conventional outboard joint with 29 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components designed to meet OEM specifications. This CV Axle Shaft NI-8202 is part of that line, offering a balance of durability and precise engineering to maintain driveline integrity in Nissan vehicles. The inclusion of a toothed ABS ring and neoprene boot reflects the line's attention to both performance and longevity.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS ring designed to interface with your vehicle's anti-lock braking system for accurate wheel speed monitoring. The neoprene boot material provides resistance to environmental factors, helping to prevent premature wear. The axle nut is a standard locking type with a hex head measuring 1 3/8 inches (34.64 mm) across flats and a height of 5/7 inches (18 mm), ensuring secure installation. The shaft's overall compressed length is 38.39 inches (975 mm), suitable for the specified Nissan models. The inboard joint is male type with 26 splines, while the outboard joint is conventional with 29 splines, matching factory specifications for proper fitment and function.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Nissan Altima and Maxima
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included standard locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8202, verify compatibility with your Nissan Altima or Maxima model year. Use the included standard locking hex axle nut (M24*1.5 thread) and torque to manufacturer specifications. Inspect the ABS tone ring alignment carefully to maintain proper sensor operation. Ensure the neoprene boot is seated correctly to prevent contamination. Professional installation is recommended to maintain driveline safety and performance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. It includes a standard locking axle nut and ABS tone ring for complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Nissan Altima and Maxima vehicles.
