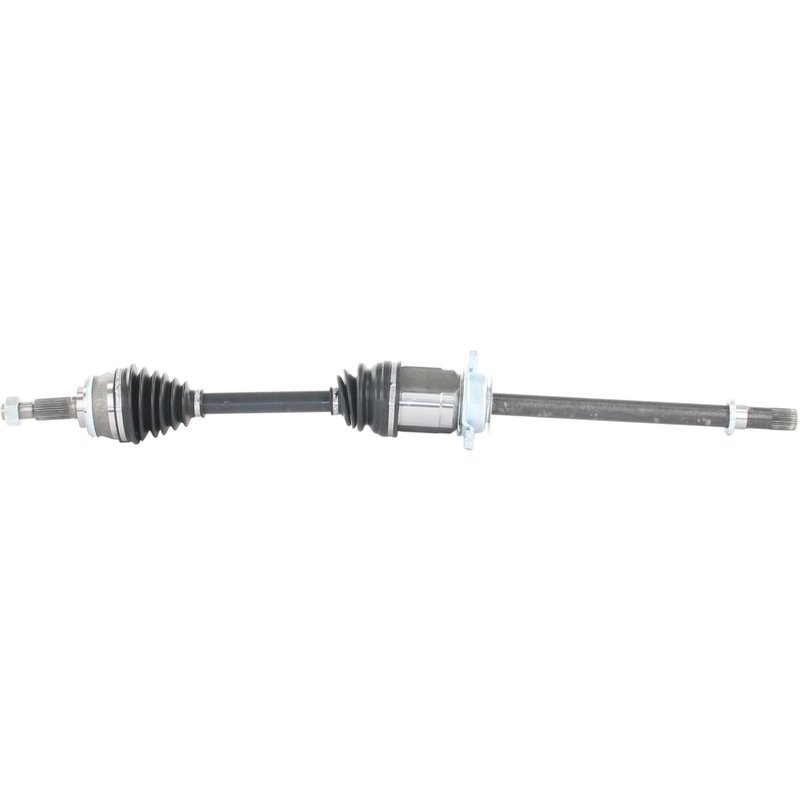

TrakMotive NI-8205 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8205 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 39.8 |
| Overall Compressed Length (mm) | 1011 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 5 vehicles |
New CV axle shaft. A direct replacement for restoring driveline function.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Standard hex nut is ready for installation.
Cross-references Cardone New 66-6245, Cardone Reman 60-6245 and TrakMotive NI-8205 for the same application. See all 18.
Front Right CV Axle Shaft for Murano
TrakMotive NI-8205 is a new CV axle shaft for the front right position on select 2003-2007 Nissan Murano models. It is built for direct replacement service with OE-style dimensions and spline counts for the listed application.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8205
- Fits 2003-2007 Nissan Murano, front right
- New axle assembly for driveline repair
- 29 inboard splines and 29 outboard splines
- Male inboard shaft connection with conventional outboard joint type
- Neoprene boot material
- Includes axle nut with M24 x 1.5 thread size
- Axle nut hex size: 34.64 mm (1 3/8 in)
- Overall compressed length: 1011 mm (39.8 in)
Detailed Description
TrakMotive NI-8205 is a CV axle shaft for the front right side of the Nissan Murano, covering 2003-2007 model years. This axle is a new replacement part with a male inboard shaft connection, conventional outboard joint design, and matching 29-spline counts at both ends for the listed fitment. The neoprene boot helps protect the joint assembly, while the included axle nut simplifies parts matching during service. This part cross-references Cardone New 66-6245 and Cardone Reman 60-6245 for the same application.
Common Repair Uses
- Restoring driveline operation after a worn or damaged front axle
- Addressing clicking or popping noises during turns
- Correcting vibration caused by CV joint wear
- Replacing a leaking or torn CV boot assembly
- Repairing axle shaft damage from mileage, road impact, or joint failure
Installation Notes and Tips
Verify front right placement, spline count, axle length, and axle nut thread size before installation. Confirm whether the vehicle is equipped for the listed application and inspect related components such as hub, seals, and suspension hardware during service. ABS tone ring is not included. ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement component and backs it with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing system.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Nissan | Murano | FWD | Front Right | CV Axle Shaft |
| 2006 | Nissan | Murano | FWD | Front Right | CV Axle Shaft |
| 2005 | Nissan | Murano | FWD | Front Right | CV Axle Shaft |
| 2004 | Nissan | Murano | FWD | Front Right | CV Axle Shaft |
| 2003 | Nissan | Murano | FWD | Front Right | CV Axle Shaft |
| No rows match your filter. | |||||
