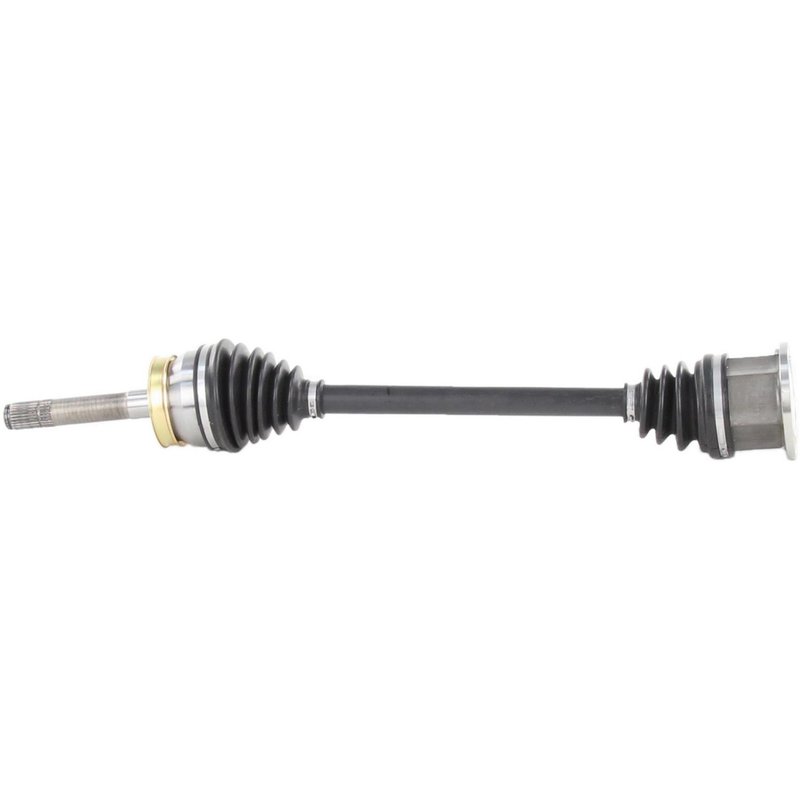

TrakMotive NI-8209 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8209 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 28.11 |
| Overall Compressed Length (mm) | 714 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 4 vehicles |
New axle shaft. Built as a direct replacement for driveline and axle service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Flange and conventional joints. Uses a straightforward shaft connection style.
Cross-references Atlantic Automotive Engineering 7250N, TrakMotive NI-8209 and 40-18382 for the same application. See all 7.
CV Axle Shaft for Nissan 720
TrakMotive NI-8209 is a new CV axle shaft for the front right position on select 1983-1986 Nissan 720 models. It is built with a neoprene boot, a flange-style inboard connection, and a conventional outboard joint for direct driveline service.
Key Features
- Fits 1983-1986 Nissan 720, front right
- TrakMotive CV Axle Shaft, part number NI-8209
- New replacement axle shaft
- Neoprene boot material
- Flange inboard joint and flange shaft connection
- Conventional outboard joint and shaft connection
- 26 outboard splines
- Overall compressed length: 28.11 in. (714 mm)
- No ABS tone ring included
- Axle nut not included
Product Details
TrakMotive NI-8209 is a driveline replacement CV axle shaft for Nissan 720 front right applications. This axle is specified for 1983, 1984, 1985, and 1986 Nissan 720 models and is built as a new unit rather than remanufactured. The flange-style inboard design and conventional outboard end help match the original axle layout for the listed vehicle application. TrakMotive NI-8209 is also referenced under cross numbers such as 40-18382 and 3910050W00 for the same application.
Common Repair Uses
- Restoring driveline function after CV joint wear
- Replacing a damaged or torn axle boot assembly
- Addressing clicking, vibration, or axle noise during turns
- Correcting axle shaft play or spline wear
- Repairing front right axle issues on a Nissan 720
Installation Notes
Verify front right fitment before installation and compare spline count, compressed length, and connection style to the original axle. This axle does not include an axle nut or ABS tone ring, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle setup. Confirm all mating surfaces, seals, and hub components are in serviceable condition before assembly.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and identifies the product line under ISO 9001:1007 and TS 16949:2009 certified production standards. The NI-8209 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1986 | Nissan | 720 | 4WD | Front Right | CV Axle Shaft |
| 1985 | Nissan | 720 | 4WD | Front Right | CV Axle Shaft |
| 1984 | Nissan | 720 | 4WD | Front Right | CV Axle Shaft |
| 1983 | Nissan | 720 | 4WD | Front Right | CV Axle Shaft |
| No rows match your filter. | |||||
