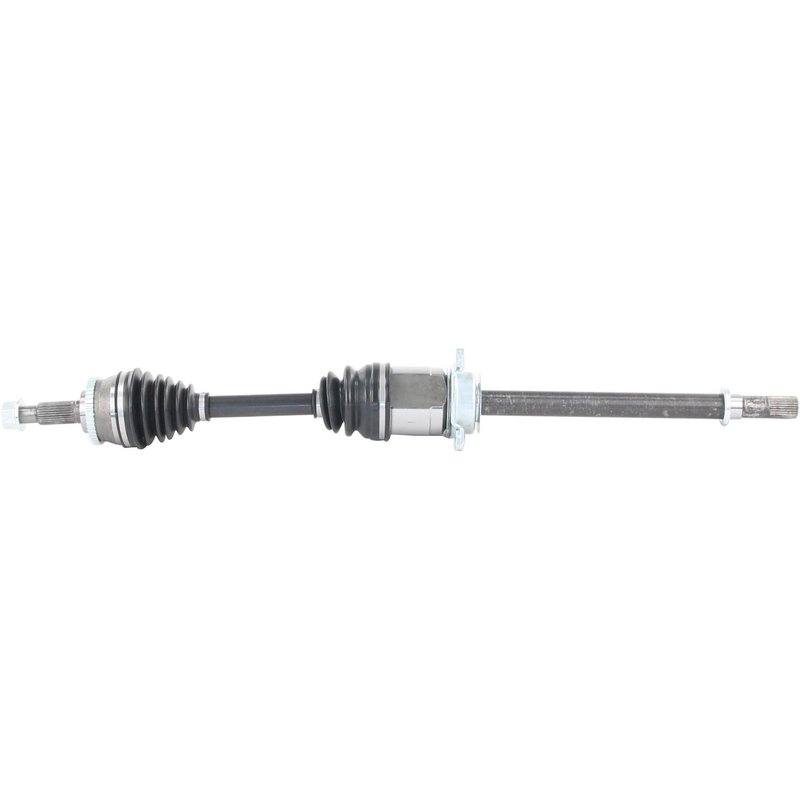

TrakMotive NI-8230 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8230 for Nissan Maxima

The TrakMotive CV Axle Shaft NI-8230 is designed specifically for Nissan Maxima models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Nissan Maxima
• Part Number: NI-8230
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 38.78 inches (985 mm)
• 29 splines on both inboard and outboard shafts

Detailed Features of the TrakMotive CV Axle Shaft NI-8230

This CV axle shaft from TrakMotive’s CV Axle Shaft product line is engineered to meet the specific requirements of Nissan Maxima vehicles. It features a neoprene boot that resists wear and environmental damage, helping to protect the joint from contaminants. The ABS tone ring is toothed with 44 teeth, ensuring accurate wheel speed sensor readings for ABS functionality. The axle nut included is a hex type with a 1 1/4 inch (31.8 mm) hex size and a height of 6/7 inches (22 mm), secured with a cotter pin locking system to maintain safe and secure installation.

The inboard joint is a male type with 29 splines, matching the inboard shaft connection style, while the outboard joint is conventional with 29 splines as well. The overall compressed length of 38.78 inches (985 mm) ensures proper fitment and alignment within the driveline assembly.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed for direct replacement applications. These shafts are manufactured to meet or exceed OEM specifications, providing reliable performance and fitment for vehicles like the Nissan Maxima. This product line emphasizes durability and precision engineering, including features such as ABS tone rings and secure axle nut locking mechanisms.

Common Applications and Issues Addressed

• Replacement of worn or damaged CV axle shafts on Nissan Maxima
• Restoring proper ABS sensor function with included toothed ABS tone ring
• Eliminating axle vibration or clicking noises caused by joint wear
• Resolving grease leaks from torn or damaged CV boots
• Ensuring secure axle nut fastening with cotter pin locking system

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8230, ensure the axle nut is torqued to the manufacturer’s specifications and secured with the included cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate ABS operation. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct fitment on Nissan Maxima models, but always confirm compatibility with your specific vehicle year and trim.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8230 is a new, remanufactured-quality replacement part built to meet OEM standards. It includes a neoprene boot and ABS tone ring to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
