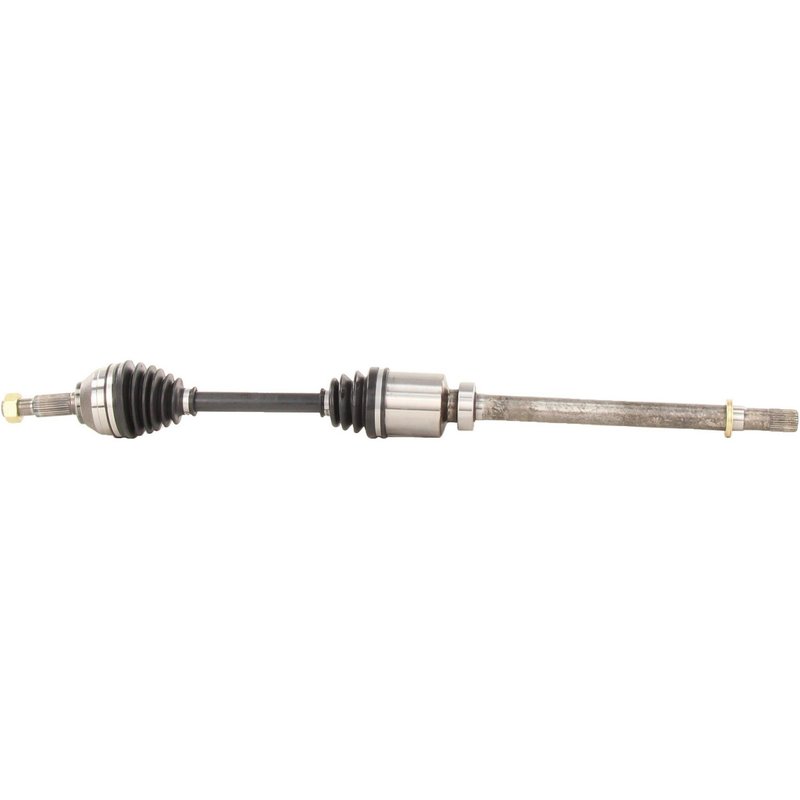

TrakMotive NI-8231 CV Axle Shaft - Front Right

CV Axle Shaft for Nissan Altima Front Right

TrakMotive NI-8231 is a new CV axle shaft for the front right position on select 2007-2012 Nissan Altima models. It is built with a neoprene boot, 29 inboard splines, 29 outboard splines, and includes the axle nut for a direct replacement service.

Key Features

• Fits 2007-2012 Nissan Altima, front right
• TrakMotive CV Axle Shaft, part number NI-8231
• New axle assembly with male inboard shaft connection
• Conventional outboard joint and conventional outboard shaft connection
• Neoprene boot material for driveline protection
• 29 inboard splines and 29 outboard splines
• Overall compressed length: 38.98 in. (990 mm)
• Axle nut included; M24 x 1.5 thread, 34.64 mm hex size
• No ABS tone ring included

Detailed Description

TrakMotive NI-8231 is a front right CV axle shaft engineered for 2007-2012 Nissan Altima applications. This new axle shaft uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support consistent driveline operation in the specified position. The included axle nut and OE-style spline counts help simplify replacement on the Nissan Altima front right corner. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Clicking or popping during turns caused by worn CV joints
• Vibration from a damaged or worn axle shaft
• Torn boot conditions that can lead to grease loss and contamination
• Front right driveline noise on 2007-2012 Nissan Altima vehicles
• Axle replacement needs after joint wear or shaft damage

Installation Notes and Tips

Verify spline count, compressed length, and axle nut thread size before installation. Confirm front right application on the vehicle and inspect related hub, seal, and suspension components during service. Because ABS axles fit non-ABS applications unless otherwise noted, confirm whether the vehicle uses ABS and compare the existing axle configuration before installation. Professional installation is recommended for proper torque and fitment.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled manufacturing and quality management processes.
