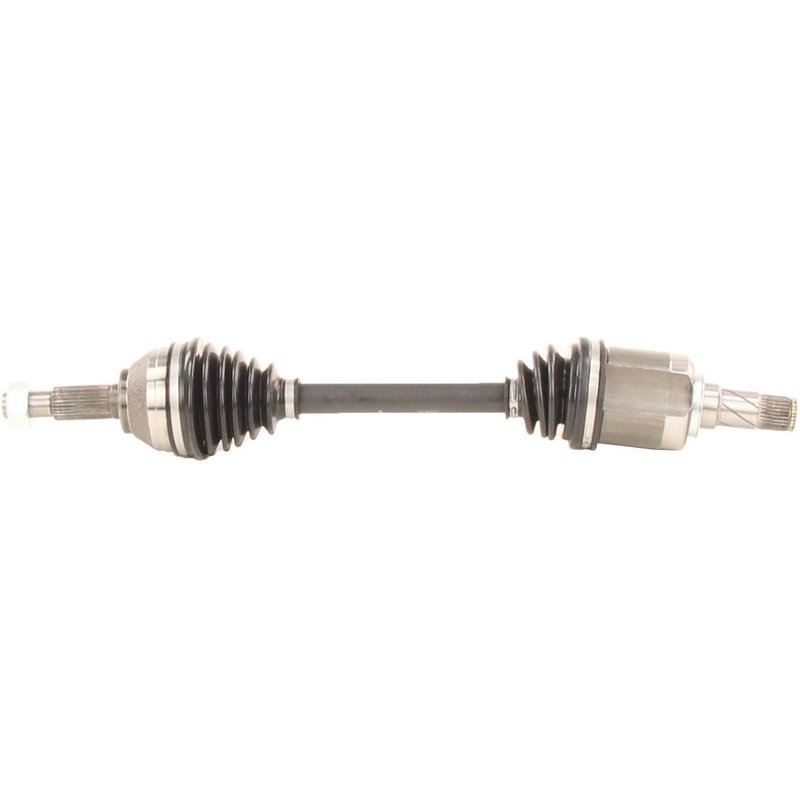

TrakMotive NI-8232 CV Axle Shaft - Front Left

TrakMotive CV Axle Shaft for Nissan Altima

TrakMotive NI-8232 is a new CV axle shaft for the front left position on select 2007-2012 Nissan Altima models. It is built with a neoprene boot, male inboard connection, and conventional outboard joint design for direct driveline service on the listed application.

Key Features

• Fits 2007-2012 Nissan Altima, front left
• New CV axle shaft for driveline and axle repair
• 29 inboard splines and 29 outboard splines
• Neoprene boot material for CV joint protection
• Includes axle nut with M24 x 1.5 thread size
• 34.64 mm axle nut hex size and standard locking type
• Overall compressed length: 25.43 in. (646 mm)
• TrakMotive part number NI-8232

Product Details

This TrakMotive CV axle shaft is engineered for the front left side of the Nissan Altima across the 2007-2012 model years. The assembly uses a male inboard shaft connection, a conventional outboard shaft connection, and matching 29-spline counts at both ends to support proper fitment on the specified application. NI-8232 also includes the axle nut, which helps simplify replacement planning for the listed vehicle fitment.

TrakMotive positions this CV axle shaft within its CV Axle Shaft product line for driveline service work where a worn or damaged axle needs replacement. The part number NI-8232 is also referenced for the same application under cross-reference numbers 60-6265, 80-4697, 8027N, 39101JA00A, 39101JA000, and NI-8-8749.

Common Repair Symptoms

• Clicking or popping during turns from a worn front axle
• Vibration during acceleration caused by axle wear
• Grease leakage from a damaged CV boot
• Clunking or looseness in the driveline
• Loss of smooth power transfer to the front wheels

Installation Notes

Verify the front left position, spline count, and axle nut thread size before installation. Confirm the axle length and connection style against the removed part to ensure proper alignment on the Nissan Altima application. Inspect related suspension and hub components during service, and replace any worn seals or hardware that affect axle operation.

Quality Assurance

TrakMotive states that this axle is backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified. ABS axles fit non-ABS applications unless otherwise noted.
