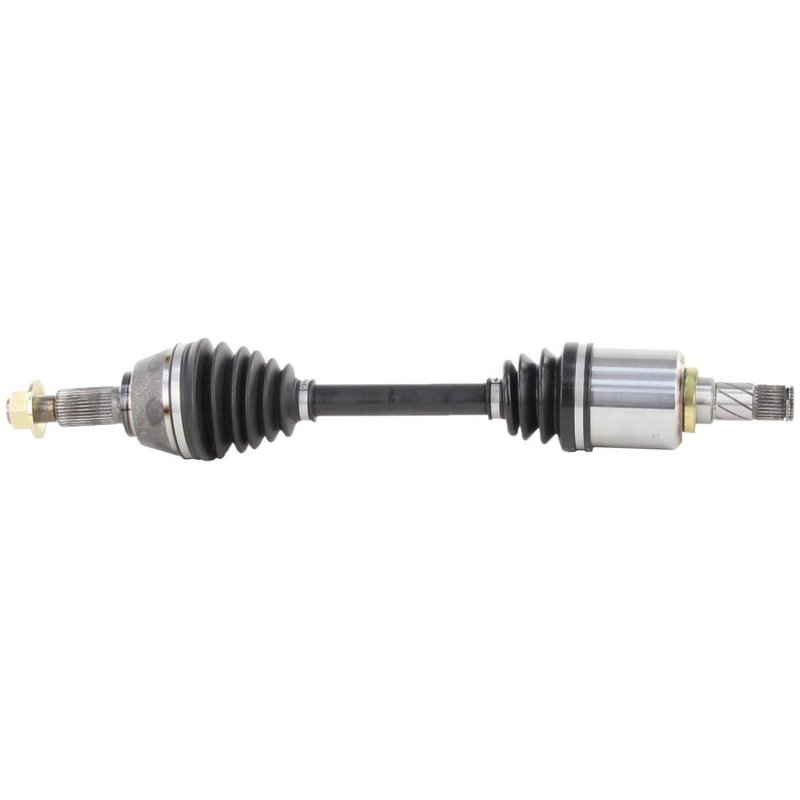

TrakMotive NI-8237 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8237 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.88 |
| Overall Compressed Length (mm) | 632 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 13 vehicles |
OE-style replacement. New CV axle shaft with included axle nut for a straightforward install.
Neoprene boot. Durable material helps protect the joint from wear and contamination.
Certified manufacturing. Built by an ISO 9001 and TS 16949 certified company.
Cross-references Cardone New 66-6268, TrakMotive NI-8237 and 80-4809 for the same application. See all 11.
TrakMotive CV Axle Shaft for Nissan Altima
The TrakMotive CV Axle Shaft NI-8237 is a new front left driveline replacement for select Nissan Altima applications. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint to match the specified OE-style configuration.
Compatible with 2007-2012 Nissan Altima, front left, and 2013 Nissan Altima, front left, Automatic CVT. This TrakMotive CV axle shaft NI-8237 is engineered for direct-fit replacement in the listed applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8237
- New replacement axle shaft
- Front left position
- Neoprene boot material
- Male inboard shaft connection
- Conventional outboard joint type
- Includes axle nut with cotter pin locking type
- Axle nut thread size: M24 x 1.5
- Overall compressed length: 24.88 in. (632 mm)
- Inboard splines: 29
- Outboard splines: 32
Product Details
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built for OE-style fit and function. The NI-8237 is specified for Nissan Altima front left applications and uses the listed spline counts, shaft connection styles, and axle nut dimensions to match the vehicle’s original setup. It is a direct replacement for the 2007-2012 Nissan Altima front left and the 2013 Nissan Altima front left with Automatic CVT.
This part cross-references Cardone New 66-6268 for the same application. The NI-8237 part number is also used across interchange listings for related Nissan Altima front axle applications.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain during acceleration
- Grease leakage from a damaged axle boot
- Axle shaft wear that affects smooth power transfer to the front wheel
- Noise or looseness caused by a failing front left CV axle assembly
Installation Notes
Verify spline count, axle nut thread size, and overall length before installation. Confirm the vehicle is a front left application and check whether the 2013 Nissan Altima is equipped with Automatic CVT, as listed. The axle nut is included and uses a cotter pin locking type. ABS tone ring is not included.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for this replacement part.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2013 | Nissan | Altima | — | Coupe | FWD | Automatic CVT | 3.5L | V6 | Front Left | Automatic CVT; CV Axle Shaft |
| 2012 | Nissan | Altima | SR | — | — | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2012 | Nissan | Altima | Base | — | — | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2012 | Nissan | Altima | — | — | — | Automatic CVT | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2011 | Nissan | Altima | SR | — | — | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2011 | Nissan | Altima | Base | — | — | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2011 | Nissan | Altima | — | — | — | Automatic CVT | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2010 | Nissan | Altima | SR | — | — | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2010 | Nissan | Altima | Base | — | — | Automatic | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2010 | Nissan | Altima | — | — | — | Automatic CVT | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2009 | Nissan | Altima | — | — | — | Automatic CVT | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2008 | Nissan | Altima | — | — | — | Automatic CVT | 3.5L | V6 | Front Left | CV Axle Shaft |
| 2007 | Nissan | Altima | — | — | — | Automatic CVT | 3.5L | V6 | Front Left | CV Axle Shaft |
