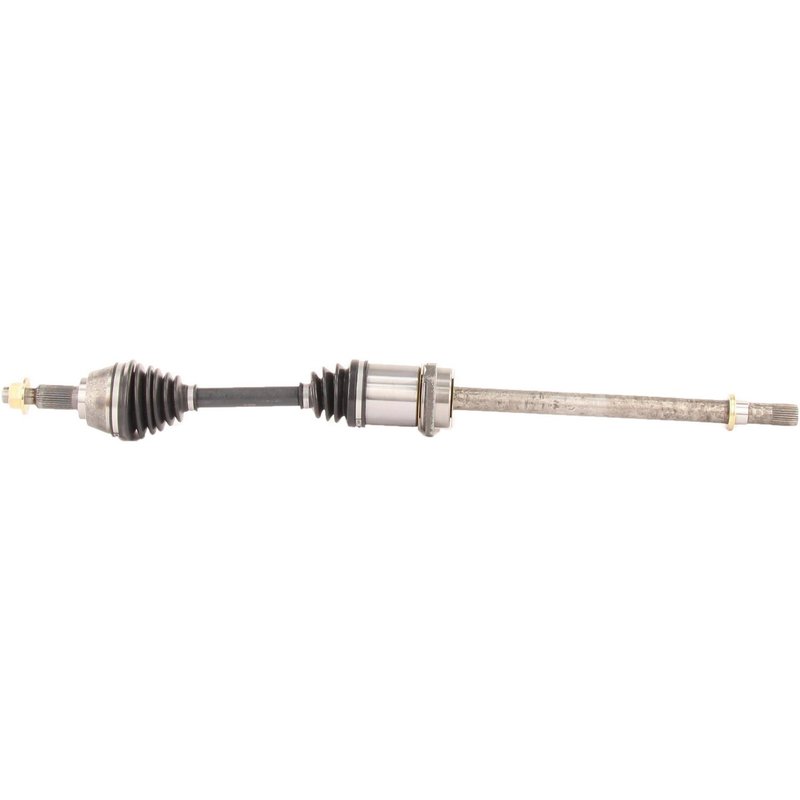

TrakMotive NI-8239 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8239 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 40.04 |
| Overall Compressed Length (mm) | 1017 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 8 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Cotter-pin locking type simplifies reassembly.
Cross-references TrakMotive NI-8239, 80-4806 and 39100JA10F for the same application. See all 5.
CV Axle Shaft for Nissan Altima
TrakMotive NI-8239 is a new CV axle shaft for the front right position on select Nissan Altima applications. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint design for direct driveline service.
Key Features
- Fits 2007-2012 Nissan Altima, front right
- Fits 2013 Nissan Altima, front right, w/ manual transmission
- New CV axle shaft for driveline and axle repair
- Neoprene boot material for flexible joint protection
- Includes axle nut with M24 x 1.5 thread, 31.8 mm hex size, and cotter pin locking type
- 29 inboard splines and 32 outboard splines
- Overall compressed length: 40.04 in. (1017 mm)
Detailed Description
TrakMotive CV Axle Shaft NI-8239 is engineered for front right replacement on Nissan Altima models from 2007 through 2013, including 2013 Nissan Altima manual transmission applications. This axle shaft uses a male inboard connection and a conventional outboard joint, with a neoprene boot to help protect the CV joints during normal suspension and steering movement. The axle nut is included, and the assembly is configured with 29 inboard splines, 32 outboard splines, and a 40.04-inch compressed length for the specified application. If you are replacing a worn front right CV axle shaft on a Nissan Altima, NI-8239 provides the correct fitment details for the listed vehicles. This part cross-references AX-9508 for the same application.
Common Repair Applications
- Clicking or popping noises during turns from a worn outer CV joint
- Vibration or shudder during acceleration caused by axle wear
- Torn boot or grease loss at the CV joint
- Excessive play in the front right driveline assembly
- Replacement after axle damage from road impact or corrosion
Installation Notes and Tips
Verify spline count, compressed length, and transmission type before installation. This axle is listed for front right use on 2007-2012 Nissan Altima and on 2013 Nissan Altima with manual transmission. Confirm axle nut thread size, hex size, and locking style match the vehicle before assembly. Inspect related components such as wheel hub, seals, and suspension hardware during service to help prevent repeat repairs.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2013 | Nissan | Altima | — | Coupe | — | 3.5L | V6 | Front Right | w/ Manual Transmission; CV Axle Shaft |
| 2012 | Nissan | Altima | SR | — | Manual | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2011 | Nissan | Altima | SR | — | Manual | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2010 | Nissan | Altima | SR | — | Manual | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2009 | Nissan | Altima | SE | — | Manual | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2008 | Nissan | Altima | SE | — | Manual | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2007 | Nissan | Altima | SL | — | Manual | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2007 | Nissan | Altima | SE | — | Manual | 3.5L | V6 | Front Right | CV Axle Shaft |
