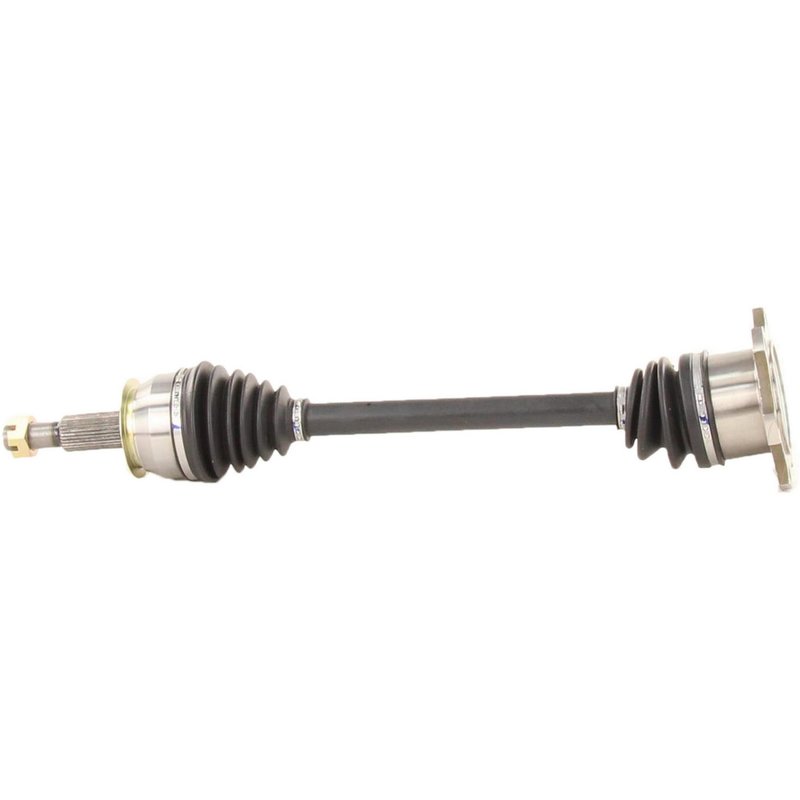

TrakMotive NI-8243 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive NI-8243 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17.5 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.1 |
| Overall Compressed Length (mm) | 663 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 40 vehicles |
New axle shaft. Fresh replacement part for driveline and CV applications.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. Cotter-pin locking type for secure installation.
Cross-references TrakMotive NI-8243, 60-6350 and 39600EA000 for the same application. See all 5.
CV Axle Shaft for Nissan Pathfinder
TrakMotive NI-8243 is a new CV axle shaft for rear applications on the 2005-2012 Nissan Pathfinder. It is built for direct replacement service on rear left and rear right positions, with OE-style dimensions and connection points for a straightforward driveline repair.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8243
- Fits 2005-2012 Nissan Pathfinder, rear right
- Fits 2005-2012 Nissan Pathfinder, rear left
- New axle assembly with 26.1 in. overall compressed length
- Flange inboard joint and conventional outboard joint
- 32 outboard splines
- Neoprene boot material
- Includes axle nut with M24 x 1.5 thread, hex head, and cotter pin locking type
- No ABS tone ring included
Product Details
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to match vehicle-specific fitment requirements. NI-8243 is engineered for the rear axle positions on the Nissan Pathfinder and uses a flange-style inboard connection with a conventional outboard shaft connection. The axle measures 26.1 inches compressed and includes a neoprene boot for joint protection. This part cross-references OE-style numbers such as 39600EA000 and 650787 for the same application.
Common Repair Symptoms
- Clicking or popping from the rear driveline during turns
- Vibration from worn CV joints or shaft imbalance
- Torn boot or grease leakage at the axle assembly
- Excessive play in the rear axle shaft
- Noise under acceleration or load changes
Installation Notes
Verify rear left or rear right application before installation on the 2005-2012 Nissan Pathfinder. Confirm axle nut thread size, spline count, and compressed length against the removed part. Inspect mating flanges, seals, and hub surfaces before assembly, and torque fasteners to the vehicle manufacturer’s specifications. Because this axle includes an axle nut, confirm the nut style and locking method match the service procedure for the vehicle.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. NI-8243 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2012 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2012 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2012 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2011 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2011 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2011 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2011 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2010 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2010 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2010 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2010 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2009 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2009 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2009 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2009 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2008 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2008 | Nissan | Pathfinder | RWD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2008 | Nissan | Pathfinder | AWD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2008 | Nissan | Pathfinder | AWD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2008 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Right | CV Axle Shaft |
| 2008 | Nissan | Pathfinder | 4WD | 4.0L | V6 | Rear Left | CV Axle Shaft |
| 2007 | Nissan | Pathfinder | RWD | — | — | Rear Right | CV Axle Shaft |
| 2007 | Nissan | Pathfinder | RWD | — | — | Rear Left | CV Axle Shaft |
| 2007 | Nissan | Pathfinder | AWD | — | — | Rear Right | CV Axle Shaft |
| 2007 | Nissan | Pathfinder | AWD | — | — | Rear Left | CV Axle Shaft |
| 2007 | Nissan | Pathfinder | 4WD | — | — | Rear Right | CV Axle Shaft |
| 2007 | Nissan | Pathfinder | 4WD | — | — | Rear Left | CV Axle Shaft |
| 2006 | Nissan | Pathfinder | RWD | — | — | Rear Right | CV Axle Shaft |
| 2006 | Nissan | Pathfinder | RWD | — | — | Rear Left | CV Axle Shaft |
| 2006 | Nissan | Pathfinder | AWD | — | — | Rear Right | CV Axle Shaft |
| 2006 | Nissan | Pathfinder | AWD | — | — | Rear Left | CV Axle Shaft |
| 2006 | Nissan | Pathfinder | 4WD | — | — | Rear Right | CV Axle Shaft |
| 2006 | Nissan | Pathfinder | 4WD | — | — | Rear Left | CV Axle Shaft |
| 2005 | Nissan | Pathfinder | RWD | — | — | Rear Right | CV Axle Shaft |
| 2005 | Nissan | Pathfinder | RWD | — | — | Rear Left | CV Axle Shaft |
| 2005 | Nissan | Pathfinder | AWD | — | — | Rear Right | CV Axle Shaft |
| 2005 | Nissan | Pathfinder | AWD | — | — | Rear Left | CV Axle Shaft |
| 2005 | Nissan | Pathfinder | 4WD | — | — | Rear Right | CV Axle Shaft |
| 2005 | Nissan | Pathfinder | 4WD | — | — | Rear Left | CV Axle Shaft |
