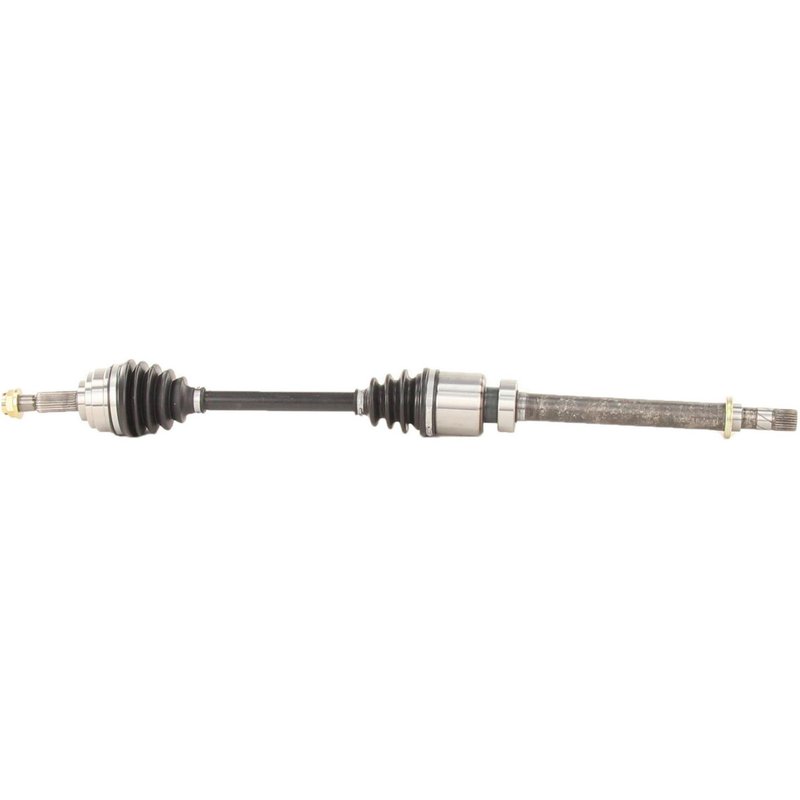

TrakMotive NI-8247 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8247 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 35.94 |
| Overall Compressed Length (mm) | 913 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 12 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Hardware included. Comes with the axle nut and cotter-pin locking setup.
Cross-references Cardone New 66-6255, TrakMotive NI-8247 and 80-4824 for the same application. See all 10.
CV Axle Shaft for Nissan Front Right Applications
TrakMotive NI-8247 is a new CV axle shaft for front right driveline service on select Nissan Cube and Nissan Versa models. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct replacement use in the listed applications.
This CV axle shaft includes a hex axle nut with M22 x 1.5 thread size, 30 mm hex size, and cotter pin locking type. The axle uses 26 inboard splines and 25 outboard splines, with an overall compressed length of 35.94 in (913 mm). NI-8247 does not include an ABS tone ring.
Key Features
- TrakMotive CV Axle Shaft, part number NI-8247
- Front right position for listed Nissan applications
- New axle shaft construction
- Neoprene boot material
- Male inboard joint and spline-style outboard shaft connection
- Includes axle nut with cotter pin locking type
- No ABS tone ring included
- Overall compressed length: 35.94 in (913 mm)
Detailed Description
NI-8247 is a replacement CV axle shaft for 2009-2014 Nissan Cube, front right, and 2007-2012 Nissan Versa, front right. It is specified for driveline repair where the original axle has worn splines, joint noise, or boot failure. TrakMotive identifies this axle as a new unit and notes ISO 9001:1007 and TS 16949:2009 certified company manufacturing practices. This part cross-references Cardone New 66-6255 for the same application.
For buyers searching for a Nissan Cube front right CV axle shaft or a Nissan Versa front right axle shaft, NI-8247 provides the listed dimensions and connection details needed for a proper match. The part number NI-8247 is also useful when verifying interchange and catalog lookup.
Common Repair Uses
- Clicking or popping from a worn CV joint during turns
- Vibration from a damaged or bent axle shaft
- Torn or leaking CV boot service replacement
- Noise from spline wear or joint play in the front right driveline
- Replacement after axle nut or shaft damage during suspension work
Installation Notes and Tips
Verify spline count, compressed length, and axle nut thread size before installation. Confirm front right placement and compare the removed axle to NI-8247 for joint style and connection details. Use the included axle nut only if it matches the vehicle specification, and follow the vehicle service procedure for torque and cotter pin installation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certified company manufacturing standards for this product line. NI-8247 is a direct-fit replacement for the listed Nissan Cube and Nissan Versa applications, and the part number NI-8247 should be used to confirm catalog match before installation.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2014 | Nissan | Cube | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2013 | Nissan | Cube | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2012 | Nissan | Cube | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2012 | Nissan | Versa | Hatchback | Manual | — | — | Front Right | CV Axle Shaft |
| 2011 | Nissan | Cube | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2011 | Nissan | Versa | — | Manual | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2010 | Nissan | Cube | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2010 | Nissan | Versa | — | Manual | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2009 | Nissan | Cube | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2009 | Nissan | Versa | — | Manual | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2008 | Nissan | Versa | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2007 | Nissan | Versa | — | Manual | — | — | Front Right | CV Axle Shaft |
