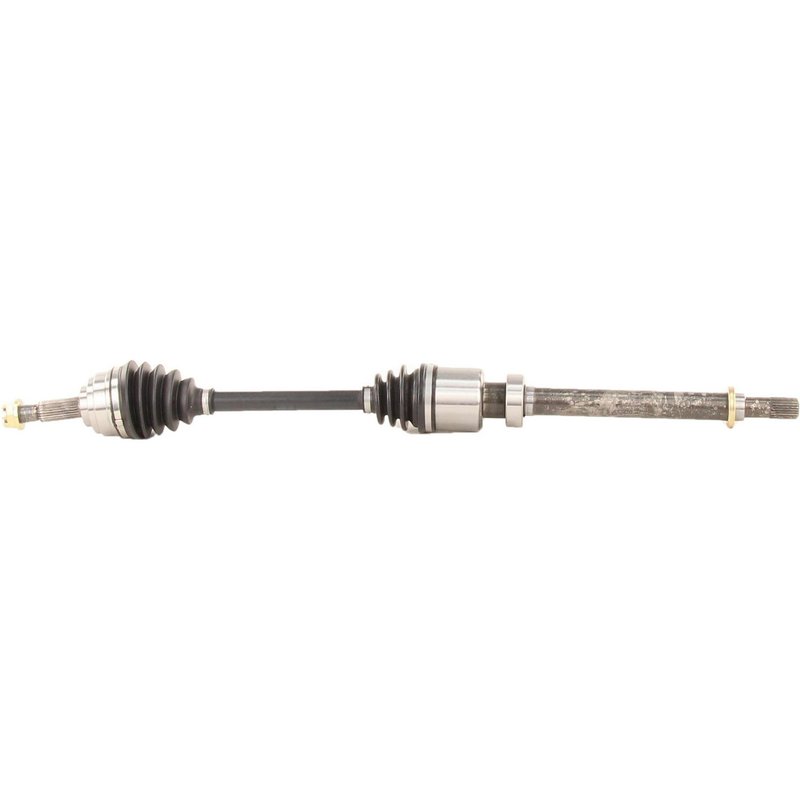

TrakMotive NI-8251 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8251 for Nissan Versa

The TrakMotive CV Axle Shaft NI-8251 is designed specifically for Nissan Versa models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Nissan Versa models
• Includes axle nut with cotter pin locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut measuring 30 mm across flats
• Overall compressed length of 35.94 inches (913 mm)
• Male inboard joint and conventional outboard joint types
• 25 splines on both inboard and outboard shafts

Detailed Features and Specifications

This TrakMotive CV Axle Shaft NI-8251 features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The axle nut included is a hex head type with a 30 mm hex size and a height of 21 mm, secured with a cotter pin locking mechanism to ensure safe installation. The inboard joint is a male type with 25 splines, matching the outboard joint which is conventional and spline-connected with 25 splines as well. The overall compressed length of the axle shaft is 35.94 inches (913 mm), designed to fit precisely within the Nissan Versa's driveline assembly.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for specific vehicle applications. This line emphasizes precise fitment and durable materials, such as neoprene boots and secure axle nut designs, to maintain driveline integrity and vehicle safety. The NI-8251 model is part of this line, tailored to meet the specifications required by Nissan Versa vehicles.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Nissan Versa
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Fixes axle nut loosening problems with cotter pin locking
• Restores proper driveline length and spline engagement

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8251, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Verify the neoprene boot is properly seated to avoid premature wear. The male inboard joint and spline outboard connection require careful alignment to avoid damage during installation. This part is designed for direct replacement on Nissan Versa models, so no modifications should be necessary.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8251 is a new, not remanufactured, component built to meet OEM standards. It includes a high-quality neoprene boot and a secure axle nut with cotter pin locking for reliable performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and fitment accuracy.
