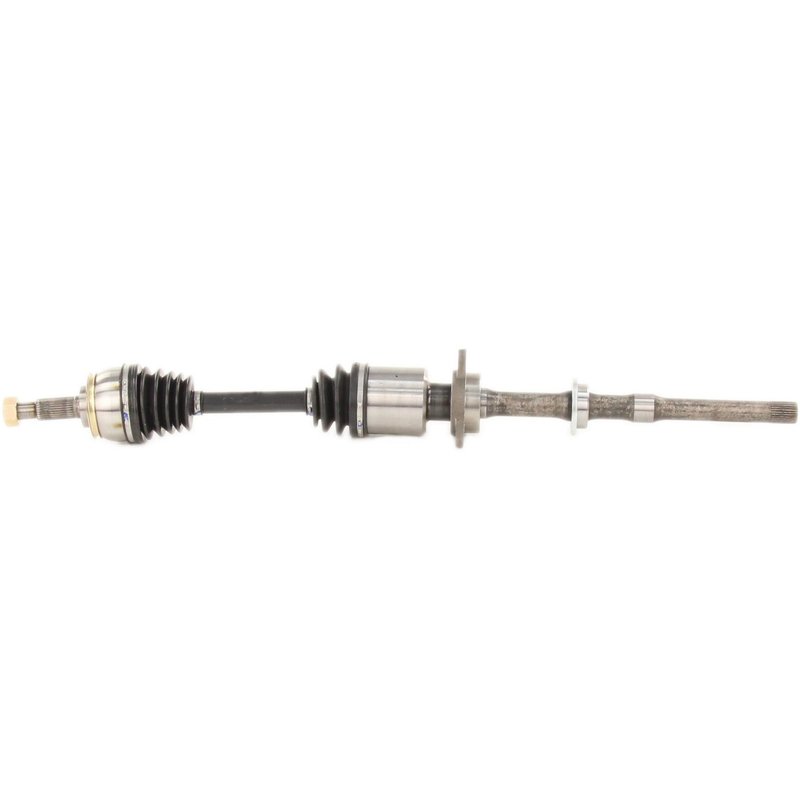

TrakMotive NI-8346 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8346 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 40.08 |
| Overall Compressed Length (mm) | 1018 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 5 vehicles |
New replacement part. Built as a new CV axle shaft for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by providing the matching nut in the box.
Cross-references TrakMotive NI-8346 and C9100-CC40J-NW for the same application. See all 2.
Front Right CV Axle Shaft for Murano
TrakMotive NI-8346 is a new CV axle shaft for the front right position on select 2003-2007 Nissan Murano models without an intermediate shaft. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service.
Use this TrakMotive CV axle shaft when replacing a worn or damaged front right axle on a Nissan Murano. The NI-8346 application is listed for 2003-2007 Nissan Murano, front right, and includes an axle nut for the specified fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8346
- Fits 2003-2007 Nissan Murano, front right
- For models without intermediate shaft
- New axle shaft construction
- Neoprene boot material
- Male inboard shaft connection
- Conventional outboard joint type
- 29 inboard splines and 29 outboard splines
- Axle nut included; M24 x 1.5 thread, 34.64 mm hex size
Product Details
TrakMotive NI-8346 is a front right CV axle shaft engineered for the Nissan Murano platform listed above. The axle measures 40.08 inches overall compressed length and uses a hex-style axle nut with standard locking type. This part is intended for vehicles that match the listed configuration and does not include an ABS tone ring.
TrakMotive positions this CV axle shaft within its CV Axle Shaft line, with manufacturing backed by ISO 9001:1007 and TS 16949:2009 certified processes. The part number NI-8346 is also cross-referenced to C9100-CC40J-NW for the same application.
Common Replacement Reasons
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Torn or leaking axle boot
- Grease loss around the front right driveline area
- Noise from a failing axle on a 2003-2007 Nissan Murano
Installation Notes
Verify that the vehicle is a 2003-2007 Nissan Murano front right application without an intermediate shaft before installation. Confirm spline count, axle nut thread size, and overall length against the original part. Inspect related hub, seal, and suspension components during replacement to help ensure proper driveline operation.
Quality Assurance
TrakMotive lists this axle shaft as a new replacement part and supports it with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Nissan | Murano | AWD | Front Right | Fits Models without Intermediate Shaft; CV Axle Shaft |
| 2006 | Nissan | Murano | AWD | Front Right | Fits Models without Intermediate Shaft; CV Axle Shaft |
| 2005 | Nissan | Murano | AWD | Front Right | Fits Models without Intermediate Shaft; CV Axle Shaft |
| 2004 | Nissan | Murano | AWD | Front Right | Fits Models without Intermediate Shaft; CV Axle Shaft |
| 2003 | Nissan | Murano | AWD | Front Right | Fits Models without Intermediate Shaft; CV Axle Shaft |
