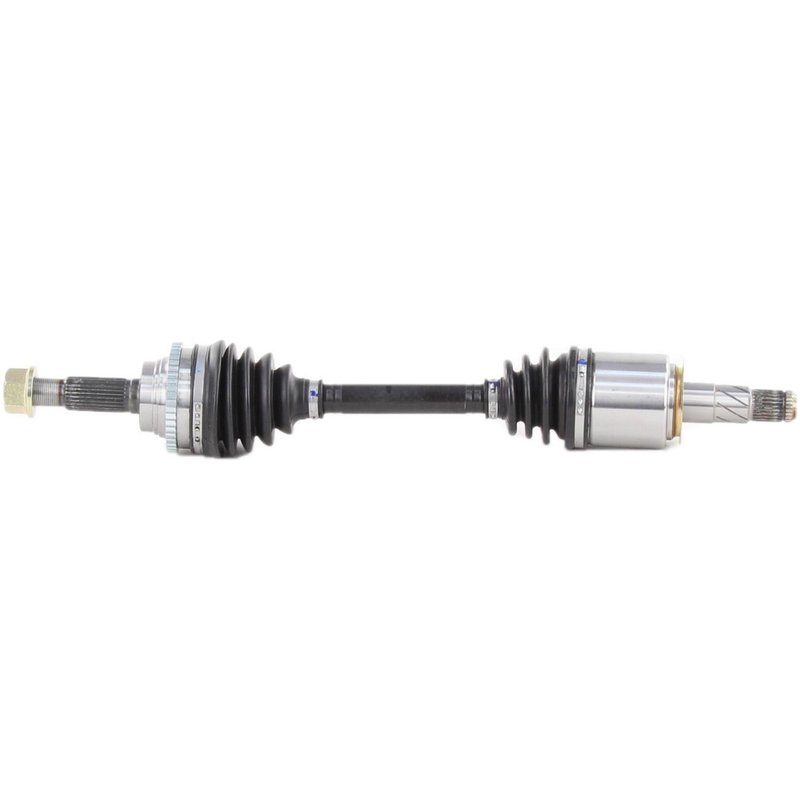

TrakMotive NI-8349 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8349 for Infiniti G35

The TrakMotive CV Axle Shaft NI-8349 is engineered specifically for the Infiniti G35, providing reliable driveline performance. Designed as a new replacement part, it ensures compatibility and durability for your vehicle's front axle assembly.

• Compatible with Infiniti G35 models
• Includes ABS tone ring with 46 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 23.35 inches (593 mm)
• Male inboard joint with 25 splines and conventional outboard joint with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and function for driveline and axle components. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts with cotter pin locking to maintain secure installation. The NI-8349 model exemplifies this approach by combining robust joint designs and ABS tone ring integration for accurate wheel speed sensor operation.

Technical Specifications and Features

This CV axle shaft features a 46-tooth ABS ring with a toothed design, which is included to support the vehicle's anti-lock braking system. The axle nut is a hex type measuring 1 1/4 inches (31.8 mm) across the flats, with a height of 1 inch (23.6 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M24x1.5 thread size and secures with a cotter pin locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the joint. The inboard joint is male type with 25 splines, while the outboard joint is conventional with 27 splines, ensuring proper connection and torque transfer.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Infiniti G35
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures axle nut with cotter pin to maintain safe driveline operation

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8349, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Verify the ABS tone ring is properly seated to maintain accurate sensor readings. Inspect the neoprene boots for any damage during installation to avoid premature failure. This part is designed for direct replacement on Infiniti G35 models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8349 is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. It includes all necessary hardware for installation and is constructed with durable materials to ensure long service life. Warranty coverage details should be confirmed with the distributor or manufacturer.
