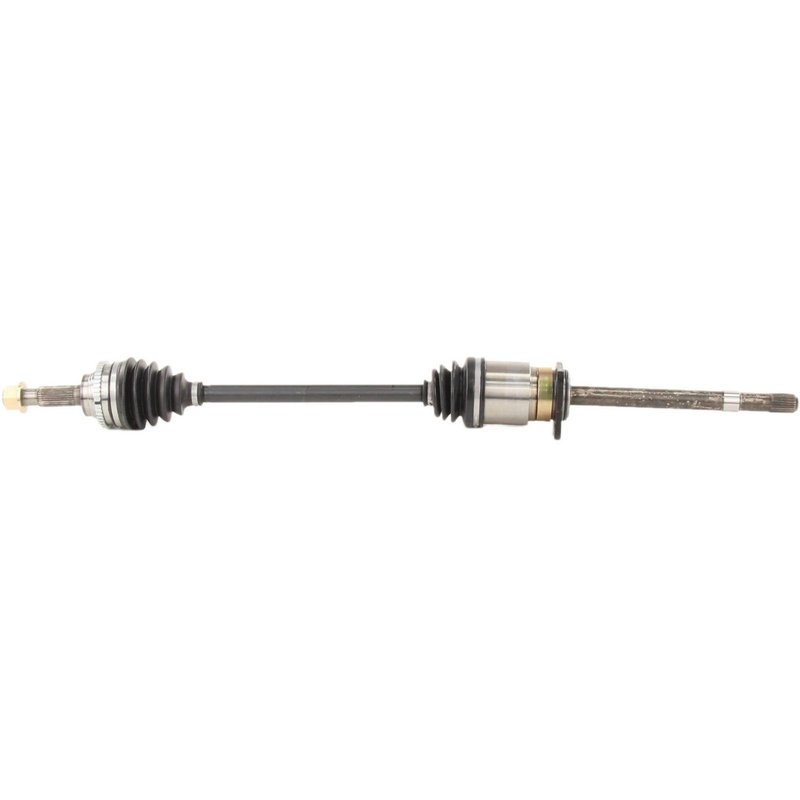

TrakMotive NI-8353 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8353 for Infiniti G35

The TrakMotive CV Axle Shaft NI-8353 is engineered specifically for the Infiniti G35, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Infiniti G35 models
• Includes ABS tone ring with 46 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 39.69 inches (1008 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features new CV axle shafts built with durable materials and precise specifications, such as the inclusion of ABS tone rings and neoprene boots, to ensure long-lasting performance and compatibility with specific vehicle models like the Infiniti G35.

Technical Specifications and Features

The NI-8353 CV axle shaft includes a 46-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across the flats, with a height of 1 inch (23.6 mm) and a length of 1 1/3 inches (34.4 mm). It features a cotter pin locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joints. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 27 splines, ensuring proper connection and torque transfer.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Infiniti G35 vehicles
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive NI-8353 CV axle shaft on an Infiniti G35, ensure the ABS tone ring aligns correctly with the wheel speed sensor. Use the included hex head axle nut and cotter pin to secure the axle shaft firmly. Verify spline engagement on both inboard and outboard joints to avoid driveline issues. Proper torque specifications should be followed according to vehicle manufacturer guidelines.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft NI-8353 is a new, not remanufactured, component built to meet or exceed OEM standards. The part includes an ABS tone ring and a neoprene boot for enhanced durability. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliable performance on Infiniti G35 vehicles.
