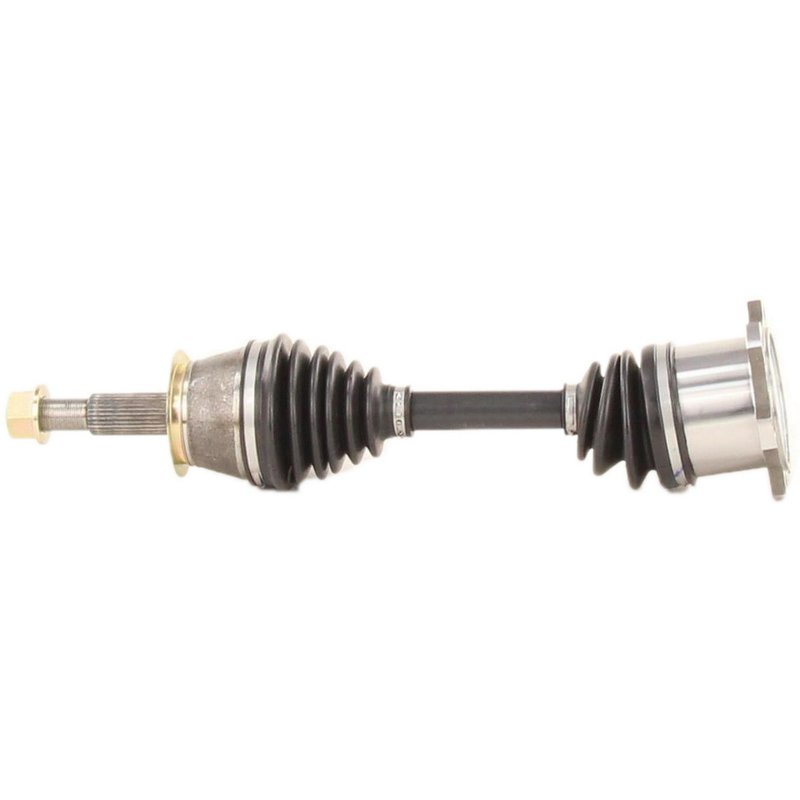

TrakMotive NI-8354 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive NI-8354 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 19.88 |
| Overall Compressed Length (mm) | 505 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 10 vehicles |
New replacement part. Built as a new CV axle shaft for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. Comes with a hex nut and cotter-pin locking style.
Cross-references TrakMotive NI-8354, 8067N and 39100ZS00A for the same application. See all 5.
CV Axle Shaft for Nissan Pathfinder
TrakMotive NI-8354 is a new CV axle shaft for front axle service on select 2008-2012 Nissan Pathfinder applications. It is built with a conventional outboard joint, a flange-style inboard connection, and a neoprene boot for dependable driveline operation.
Key Features
- Fits 2008-2012 Nissan Pathfinder, front right
- Fits 2008-2012 Nissan Pathfinder, front left
- New CV axle shaft for driveline replacement
- Conventional outboard joint and flange inboard joint
- Neoprene boot material
- 29 outboard splines
- Axle nut included with M24 x 1.5 thread, hex head, and cotter pin locking type
- Overall compressed length: 19.88 in. (505 mm)
- ABS axles fit non-ABS applications unless otherwise noted
Detailed Description
TrakMotive CV Axle Shaft NI-8354 is engineered for front axle replacement on the Nissan Pathfinder. This axle uses a flange inboard shaft connection and a conventional outboard shaft connection, with a 29-spline outboard design and a neoprene boot to support consistent articulation in the driveline. The included axle nut features a hex head, M24 x 1.5 thread, and cotter pin locking style for the specified application. TrakMotive NI-8354 is a direct-fit driveline component for 2008-2012 Nissan Pathfinder front left and front right positions.
TrakMotive’s CV axle shaft line focuses on replacement driveline components built for OE-style fitment and application-specific dimensions. NI-8354 is a new axle assembly, not remanufactured, and is listed for the Pathfinder front axle platform covered by the fitment data. This part cross-references 8067N and 39100ZS00A for the same application.
What This Part Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or imbalanced front axle shaft
- Torn or deteriorated axle boot conditions
- Grease loss from a compromised CV joint assembly
- Front driveline noise on 2008-2012 Nissan Pathfinder models
Installation Notes and Tips
Verify front left or front right application before installation on your Nissan Pathfinder. Confirm axle nut thread size, spline count, and compressed length against the original part before assembly. Inspect hub, seals, and mating components for wear, and follow the vehicle service procedure for torque and cotter pin installation.
Quality Assurance
TrakMotive NI-8354 is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Right | CV Axle Shaft |
| 2012 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Left | CV Axle Shaft |
| 2011 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Right | CV Axle Shaft |
| 2011 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Left | CV Axle Shaft |
| 2010 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Right | CV Axle Shaft |
| 2010 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Left | CV Axle Shaft |
| 2009 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Right | CV Axle Shaft |
| 2009 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Left | CV Axle Shaft |
| 2008 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Right | CV Axle Shaft |
| 2008 | Nissan | Pathfinder | 4WD | 5.6L | V8 | Front Left | CV Axle Shaft |
