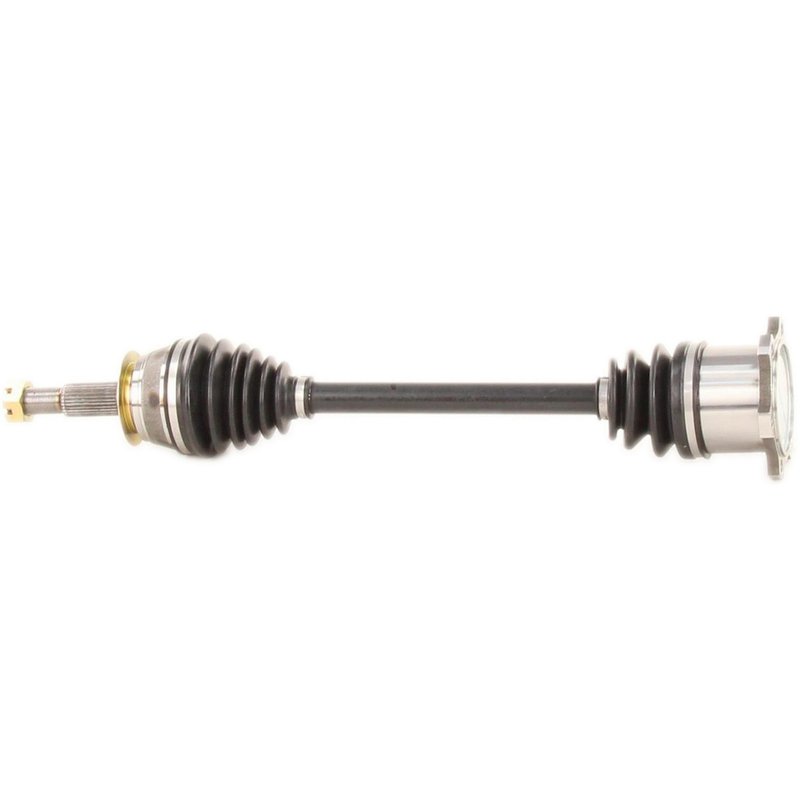

TrakMotive NI-8364 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive NI-8364 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17.5 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.41 |
| Overall Compressed Length (mm) | 645.5 |
| Product line | CV Axle Shaft |
| Fits | Nissan and INFINITI · 17 vehicles |
New replacement part. Built as a new CV axle shaft for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with a hex nut and cotter-pin locking style.
Cross-references Cardone New 66-6249, Cardone Reman 60-6249 and TrakMotive NI-8364 for the same application. See all 8.
CV Axle Shaft for Nissan and INFINITI
TrakMotive NI-8364 is a new CV axle shaft built for rear applications on select Nissan and INFINITI vehicles. It is engineered with a neoprene boot, a flange-style inboard connection, and a conventional outboard joint for direct driveline replacement on the listed fitments.
This CV axle shaft fits 2003-2009 Nissan 350Z, rear right; 2003-2007 INFINITI G35, rear right; and 2002-2006 INFINITI Q45, rear left. The NI-8364 also includes an axle nut with M24 x 1.5 thread size and a cotter pin locking design.
Key Features
- New TrakMotive CV axle shaft, part number NI-8364
- Rear axle application for select Nissan 350Z, INFINITI G35, and INFINITI Q45 models
- Neoprene boot material for CV joint protection
- Flange inboard shaft connection style
- Conventional outboard joint and shaft connection style
- 29 outboard splines
- Axle nut included with hex head and cotter pin locking type
- Overall compressed length: 25.41 in. (645.5 mm)
Product Details
TrakMotive positions the NI-8364 within its CV Axle Shaft line as a direct replacement driveline component for rear right and rear left applications listed above. The axle is built new, not remanufactured, and uses a flange-style inboard joint with a conventional outboard joint to match the specified vehicle configurations. TrakMotive part number NI-8364 cross-references Cardone New 66-6249 and Cardone Reman 60-6249 for the same application.
Common Driveline Issues This Part Can Address
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Clunking or looseness caused by excessive driveline wear
- Loss of smooth power transfer to the rear wheels
Installation Notes and Tips
Verify rear side placement before installation: this part is listed for rear right on the Nissan 350Z and INFINITI G35, and rear left on the INFINITI Q45. Confirm axle nut thread size, spline count, and overall compressed length against the original component before assembly. Inspect related seals, hub surfaces, and suspension hardware during replacement to help ensure proper fit and operation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also notes that ABS axles fit non-ABS applications unless otherwise noted.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Nissan | 350Z | — | Rear Right | CV Axle Shaft |
| 2008 | Nissan | 350Z | — | Rear Right | CV Axle Shaft |
| 2007 | INFINITI | G35 | Coupe | Rear Right | CV Axle Shaft |
| 2007 | Nissan | 350Z | — | Rear Right | CV Axle Shaft |
| 2006 | INFINITI | G35 | — | Rear Right | CV Axle Shaft |
| 2006 | INFINITI | Q45 | — | Rear Left | CV Axle Shaft |
| 2006 | Nissan | 350Z | — | Rear Right | CV Axle Shaft |
| 2005 | INFINITI | G35 | — | Rear Right | CV Axle Shaft |
| 2005 | INFINITI | Q45 | — | Rear Left | CV Axle Shaft |
| 2005 | Nissan | 350Z | — | Rear Right | CV Axle Shaft |
| 2004 | INFINITI | G35 | — | Rear Right | CV Axle Shaft |
| 2004 | INFINITI | Q45 | — | Rear Left | CV Axle Shaft |
| 2004 | Nissan | 350Z | — | Rear Right | CV Axle Shaft |
| 2003 | INFINITI | G35 | — | Rear Right | CV Axle Shaft |
| 2003 | INFINITI | Q45 | — | Rear Left | CV Axle Shaft |
| 2003 | Nissan | 350Z | — | Rear Right | CV Axle Shaft |
| 2002 | INFINITI | Q45 | — | Rear Left | CV Axle Shaft |
