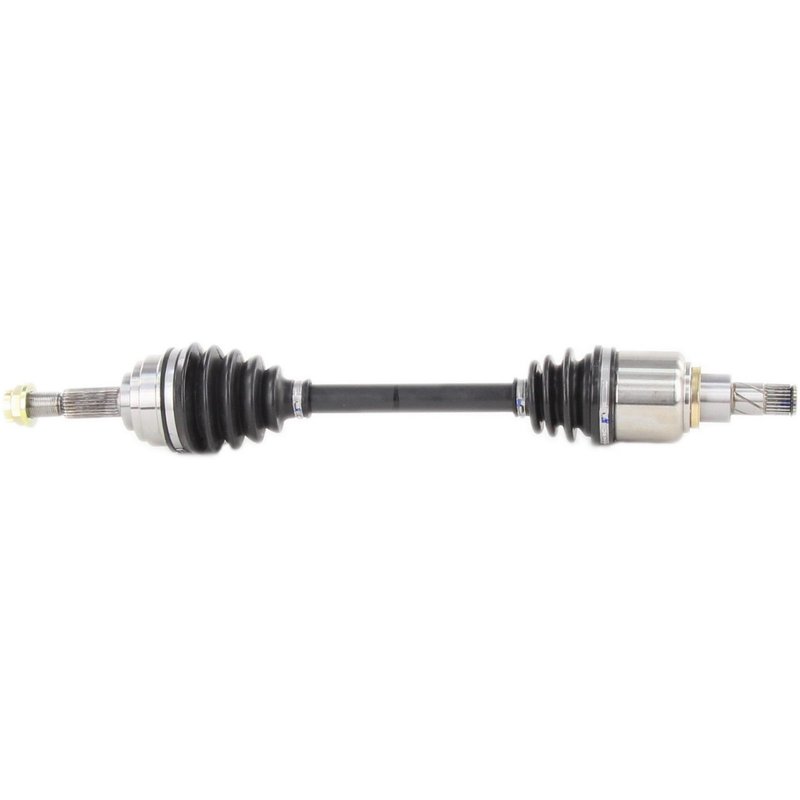

TrakMotive NI-8378 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8378 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.04 |
| Overall Compressed Length (mm) | 636 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 14 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Hardware included. Comes with the axle nut and cotter-pin locking style.
Cross-references TrakMotive NI-8378, WAI 8614N and 391013AB0C for the same application. See all 7.
TrakMotive CV Axle Shaft for Nissan Versa
TrakMotive NI-8378 is a new front left CV axle shaft for select Nissan Versa and Nissan Versa Note applications. It is built with a neoprene boot, 25 inboard splines, 25 outboard splines, and includes the axle nut for a direct replacement on the specified vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8378
- Fits 2012-2019 Nissan Versa, front left
- Fits 2014-2019 Nissan Versa Note, front left
- New axle shaft with male inboard shaft connection
- Conventional outboard joint and conventional outboard shaft connection
- Neoprene boot material for driveline protection
- Axle nut included, M22 x 1.5 thread, hex head, cotter pin locking type
- Overall compressed length: 25.04 in. (636 mm)
Product Details
This TrakMotive CV axle shaft is engineered for front left driveline service on the Nissan Versa and Nissan Versa Note. The NI-8378 uses a male inboard joint, a conventional outboard joint, and matching 25-spline connections to support proper fitment in the listed applications. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the manufacturer. TrakMotive manufactures this part as a new replacement component and identifies ISO 9001:1007 and TS 16949:2009 certification in its product literature.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping from a worn front left CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive driveline play in the front axle assembly
- Noise or binding caused by spline or joint wear
Installation Notes
Verify vehicle year, model, and front left position before installation. Confirm axle nut thread size, hex size, and compressed length against the original part to ensure correct replacement. Inspect related hub, bearing, and suspension components during service, and follow factory torque specifications for the axle nut and fasteners.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Body Type | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Nissan | Versa | Sedan | — | Automatic CVT | Front Left | CV Axle Shaft |
| 2019 | Nissan | Versa Note | — | FWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2018 | Nissan | Versa | Sedan | — | Automatic CVT | Front Left | CV Axle Shaft |
| 2018 | Nissan | Versa Note | — | FWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2017 | Nissan | Versa | Sedan | — | Automatic CVT | Front Left | CV Axle Shaft |
| 2017 | Nissan | Versa Note | — | FWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2016 | Nissan | Versa | Sedan | — | Automatic CVT | Front Left | CV Axle Shaft |
| 2016 | Nissan | Versa Note | — | FWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2015 | Nissan | Versa | Sedan | — | Automatic CVT | Front Left | CV Axle Shaft |
| 2015 | Nissan | Versa Note | — | FWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2014 | Nissan | Versa | Sedan | — | Automatic CVT | Front Left | CV Axle Shaft |
| 2014 | Nissan | Versa Note | — | FWD | Automatic CVT | Front Left | CV Axle Shaft |
| 2013 | Nissan | Versa | Sedan | — | Automatic CVT | Front Left | CV Axle Shaft |
| 2012 | Nissan | Versa | Sedan | — | Automatic CVT | Front Left | CV Axle Shaft |
