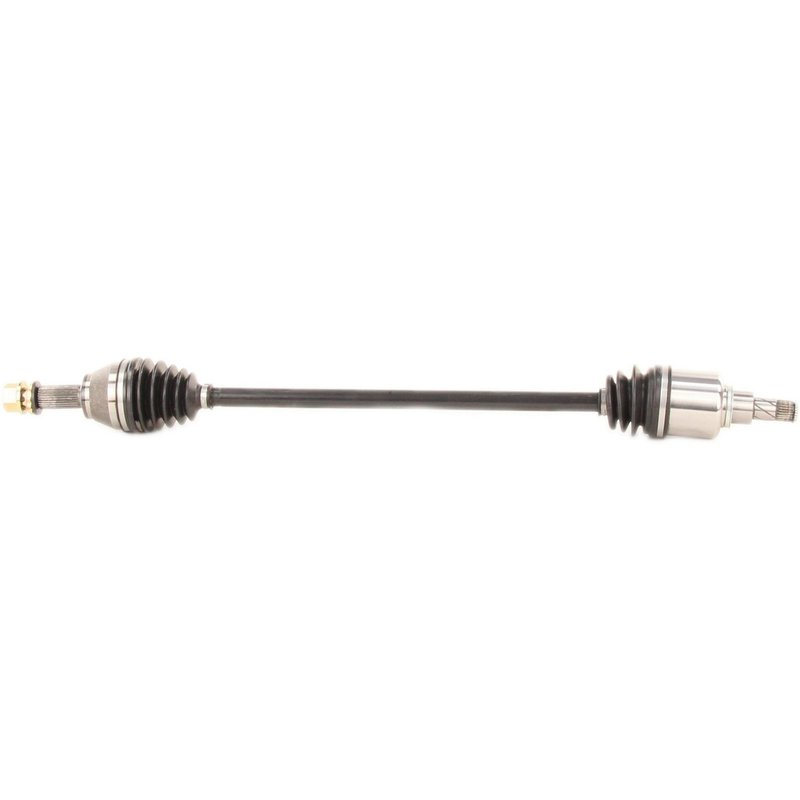

TrakMotive NI-8382 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8382 for Nissan Sentra

The TrakMotive CV Axle Shaft NI-8382 is designed specifically for Nissan Sentra models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Nissan Sentra models
• Includes axle nut with cotter pin locking type
• Neoprene boot material for enhanced joint protection
• Hex head axle nut measuring 1 1/4 inch (31.8 mm)
• Overall compressed length of 37.24 inches (946 mm)
• Male inboard joint with 25 splines and conventional outboard joint with 29 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for precise fit and function. This line emphasizes durable materials such as neoprene boots and includes necessary hardware like axle nuts with cotter pin locking to ensure secure installation and long service life. The NI-8382 part exemplifies these standards, tailored for Nissan Sentra driveline applications.

Technical Specifications and Features

The NI-8382 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 29 splines, ensuring compatibility with the Nissan Sentra's drivetrain. The included axle nut has a hex head measuring 1 1/4 inches (31.8 mm) with a height of 1 inch (23.6 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M24*1.5 thread size and secures with a cotter pin locking mechanism for added safety. The overall compressed length of the axle shaft is 37.24 inches (946 mm), matching OEM specifications for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Nissan Sentra
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8382, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Inspect the axle shaft splines for proper engagement with the transmission and wheel hub. Use appropriate tools to avoid damaging the neoprene boot during installation. Verify the overall compressed length matches the vehicle requirements to ensure correct fitment.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, new parts typically carry a limited warranty against defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
