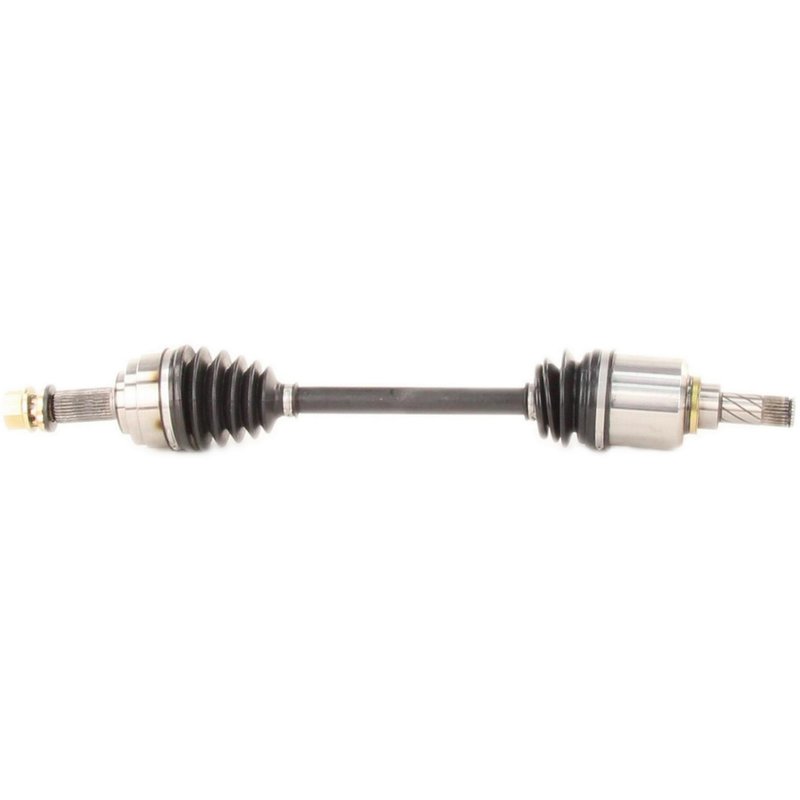

TrakMotive NI-8383 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8383 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.93 |
| Overall Compressed Length (mm) | 684 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 7 vehicles |
New axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Cotter-pin locking style simplifies installation.
Cross-references TrakMotive NI-8383, 391013RC0B and C9101-3RCMJ-NW for the same application. See all 4.
CV Axle Shaft for Nissan Sentra
Restore smooth power transfer and front-end drivability with this TrakMotive CV axle shaft, part number NI-8383. It is a new front left axle assembly for select Nissan Sentra models, including 2013-2018 Sentra and 2019 Sentra standard duty replacement applications.
Key Features
- TrakMotive CV axle shaft, part number NI-8383
- Front left position for select Nissan Sentra applications
- New replacement axle shaft for driveline service
- Neoprene boot material for CV joint protection
- Male inboard joint and conventional outboard joint design
- Includes axle nut with M24 x 1.5 thread, 1 1/4 in. hex size, and cotter pin locking type
- 26 inboard splines and 29 outboard splines
- Overall compressed length: 26.93 in. (684 mm)
Detailed Description
The TrakMotive NI-8383 CV axle shaft is built for front left driveline replacement on Nissan Sentra models from 2013-2018 and 2019. This axle shaft is configured with a male inboard connection, a conventional outboard joint, and a neoprene boot to help protect the CV joints during normal operation. The included axle nut uses an M24 x 1.5 thread and cotter pin locking style for the specified application. TrakMotive NI-8383 is a direct-fit driveline component for Sentra owners addressing worn or damaged front axle assemblies.
This part cross-references Nissan OE-style part numbers 391013RC0B and C9101-3RCMJ-NW for the same application.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Front axle wear that affects driveline smoothness
- Loss of consistent power delivery to the front wheels
Installation Notes and Tips
Fits 2013-2018 Nissan Sentra, front left. Fits 2019 Nissan Sentra, front left, standard duty replacement. Verify spline count, axle nut thread size, and compressed length against the original part before installation. Inspect related suspension and hub components during service, and follow factory torque specifications for the axle nut and fasteners.
Quality Assurance
TrakMotive identifies this axle shaft as a new replacement part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Nissan | Sentra | Manual | 1.8L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Nissan | Sentra | Manual | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2017 | Nissan | Sentra | Manual | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2016 | Nissan | Sentra | Manual | — | — | Front Left | CV Axle Shaft |
| 2015 | Nissan | Sentra | Manual | — | — | Front Left | CV Axle Shaft |
| 2014 | Nissan | Sentra | Manual | — | — | Front Left | CV Axle Shaft |
| 2013 | Nissan | Sentra | Manual | — | — | Front Left | CV Axle Shaft |
