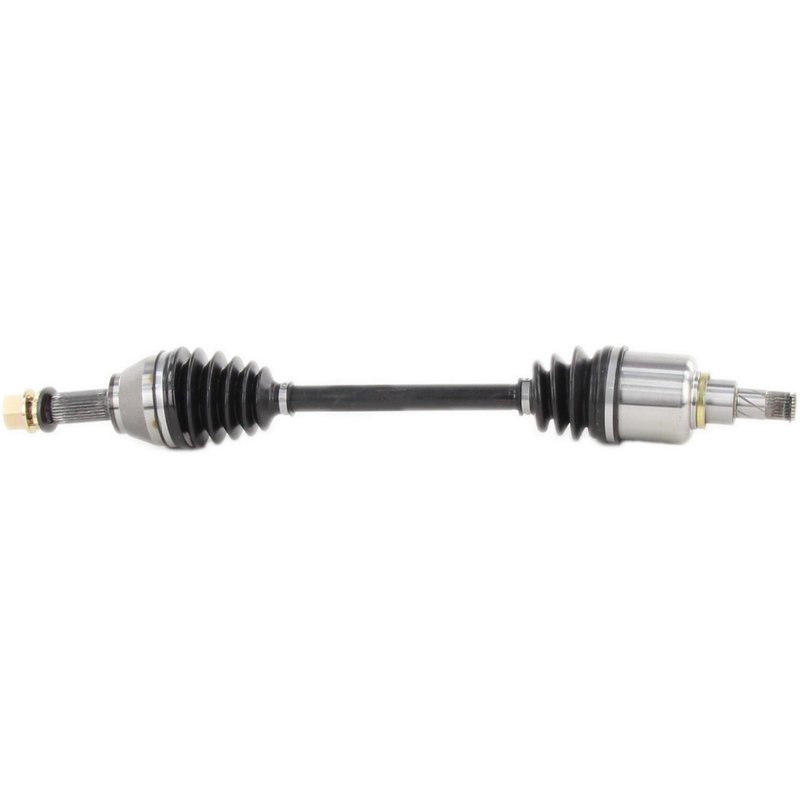

TrakMotive NI-8384 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8384 for Nissan Sentra

The TrakMotive CV Axle Shaft NI-8384 is designed specifically for Nissan Sentra models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Nissan Sentra vehicles
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for enhanced durability
• Hex head axle nut measuring 1 1/4 inch (31.8 mm)
• Overall compressed length of 27.13 inches (689 mm)
• Male inboard joint with 25 splines and conventional outboard joint with 29 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for precise fitment and durability. This line includes shafts designed with specific spline counts and joint types to match OEM specifications, ensuring compatibility and reliable driveline function for vehicles like the Nissan Sentra.

Technical Specifications and Features

The NI-8384 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 29 splines, matching the Nissan Sentra’s driveline requirements. The included axle nut has a hex head measuring 1 1/4 inches (31.8 mm) with a height of 1 inch (23.6 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M24*1.5 thread size and secures with a cotter pin locking type for added safety. The overall compressed length of the axle shaft is 27.13 inches (689 mm), ensuring proper fitment and alignment.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Nissan Sentra models
• Elimination of clicking or popping noises during turns caused by joint wear
• Resolution of vibration or shuddering issues related to axle imbalance
• Fixing grease leaks due to torn or degraded CV boots
• Restoring driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8384, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Verify the neoprene boot is properly seated to avoid contamination and premature wear. It is recommended to inspect related suspension and driveline components during installation for overall system integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and performance. Warranty details should be confirmed with the product documentation or supplier.
