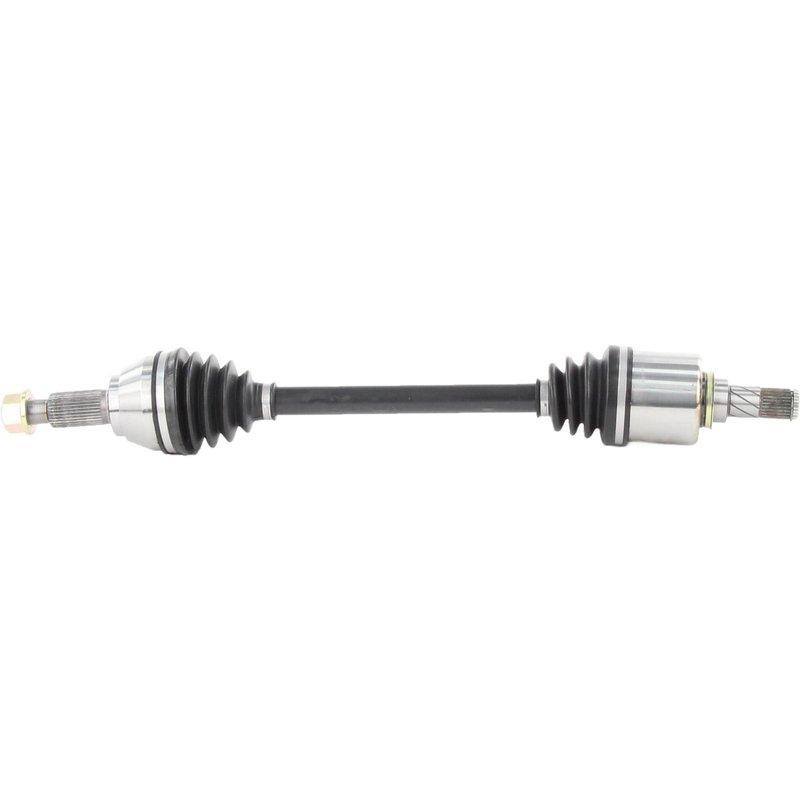

TrakMotive NI-8389 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8389 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.28 |
| Overall Compressed Length (mm) | 693 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 11 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with the nut and cotter-pin locking style for easier installation.
Cross-references Cardone New 66-6417, Cardone Reman 60-6417 and TrakMotive NI-8389 for the same application. See all 6.
TrakMotive NI-8389 CV Axle Shaft
The TrakMotive NI-8389 CV axle shaft is a new front left driveline replacement for select Nissan Altima applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to match the listed vehicle configurations.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles, and this NI-8389 axle follows that approach for Altima front-left service. It includes the axle nut and is backed by TrakMotive’s limited lifetime warranty.
Key Features
- New CV axle shaft for front left installation
- Fits 2019-2023 Nissan Altima, front left
- Fits 2014-2018 Nissan Altima, front left
- Fits 2013 Nissan Altima, front left, automatic
- Neoprene boot material for driveline protection
- Male inboard shaft connection with 27 inboard splines
- Conventional outboard joint with 32 outboard splines
- Overall compressed length: 27.28 in. (693 mm)
- Axle nut included; hex head, M24 x 1.5 thread, cotter pin locking type
- ABS tone ring not included
Detailed Description
Use the TrakMotive NI-8389 CV axle shaft when replacing a worn or damaged front left axle on select Nissan Altima models. This axle is specified for 2019-2023 Nissan Altima front left, 2014-2018 Nissan Altima front left, and 2013 Nissan Altima front left automatic applications. The part number NI-8389 is also referenced in aftermarket interchange listings for the same application.
Built as a new replacement axle, this unit uses a male inboard connection, a conventional outboard joint, and the listed spline counts to align with the original driveline setup. The included axle nut features a 1 1/4 in. hex size, 31.8 mm hex size, and M24 x 1.5 thread specification. TrakMotive NI-8389 is a direct-fit option for Nissan Altima front-left CV axle service where the listed fitment matches the vehicle.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Grease leakage from a failing CV axle assembly
- Driveline noise caused by excessive axle wear
Installation Notes and Tips
Verify front-left fitment against the vehicle year, model, and transmission details before installation. Confirm axle nut thread size, spline count, and overall length against the original part to ensure proper alignment. Inspect the hub, seals, and surrounding suspension components during replacement, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part in an ISO 9001:1007 and TS 16949:2009 certified facility. The NI-8389 includes a limited lifetime warranty. This part cross-references Cardone New 66-6417 and Cardone Reman 60-6417 for the same application.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Nissan | Altima | — | 2.5L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Nissan | Altima | — | 2.5L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Nissan | Altima | — | 2.5L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Nissan | Altima | — | 2.5L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Nissan | Altima | — | 2.5L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Nissan | Altima | — | 2.5L | L4 | Front Left | CV Axle Shaft |
| 2017 | Nissan | Altima | — | 2.5L | L4 | Front Left | CV Axle Shaft |
| 2016 | Nissan | Altima | — | 2.5L | L4 | Front Left | CV Axle Shaft |
| 2015 | Nissan | Altima | — | 2.5L | L4 | Front Left | CV Axle Shaft |
| 2014 | Nissan | Altima | Sedan | 2.5L | L4 | Front Left | CV Axle Shaft |
| 2013 | Nissan | Altima | Sedan | 2.5L | L4 | Front Left | Automatic; CV Axle Shaft |
