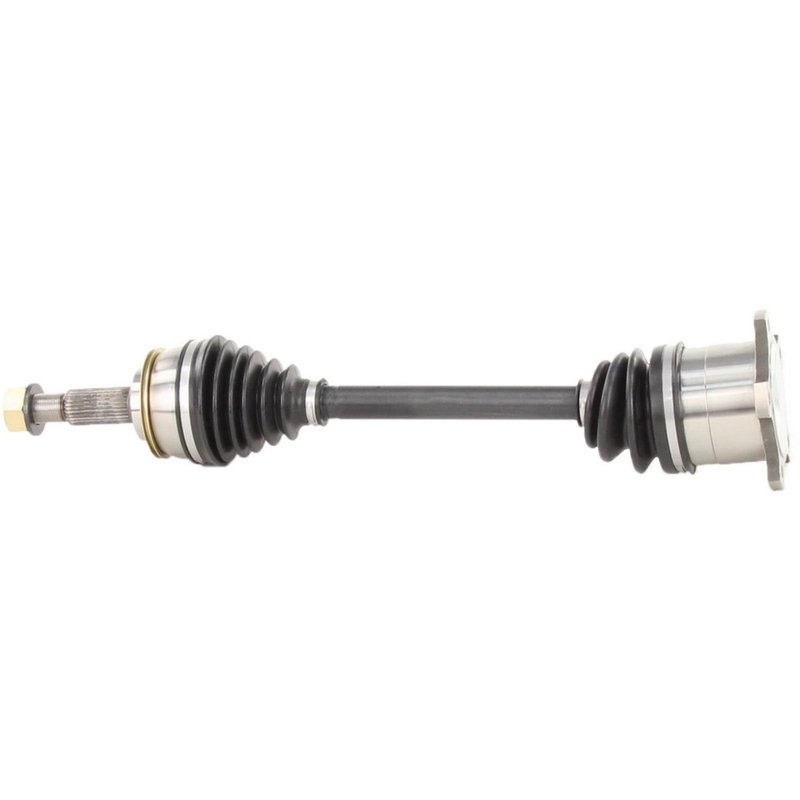

TrakMotive NI-8434 CV Axle Shaft - Rear Left
| Brand | TrakMotive NI-8434 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.41 |
| Overall Compressed Length (mm) | 594.5 |
| Product line | CV Axle Shaft |
| Fits | INFINITI · 2 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps protect the joint with durable, flexible sealing.
Axle nut included. Ready with the hardware needed for installation.
Cross-references TrakMotive NI-8434 and 396010P500 for the same application. See all 2.
TrakMotive NI-8434 CV Axle Shaft
The TrakMotive NI-8434 CV axle shaft is a new rear left driveline replacement for select 1993-1994 INFINITI J30 applications. Built with a neoprene boot, a flange-style inboard connection, and a conventional outboard joint, it is specified for direct replacement service on the rear left side.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: NI-8434
- Fits 1993-1994 INFINITI J30, rear left
- New axle shaft assembly
- Neoprene boot material
- Inboard joint type: flange
- Outboard joint type: conventional
- 29 outboard splines
- Overall compressed length: 23.41 in. (594.5 mm)
- Axle nut included with M24 x 1.5 thread, 34.64 mm hex size
Product Details
TrakMotive NI-8434 is a CV axle shaft for the rear left position on the 1993-1994 INFINITI J30, including the 1993 INFINITI J30 through 12/93. This axle shaft uses a flange-style inboard connection and a conventional outboard shaft connection, with a neoprene boot for drivetrain sealing. The axle nut is included, and the assembly is built new rather than remanufactured. This part cross-references OE number 396010P500 for the same application.
Common Repair Applications
- Clunking or vibration from the rear driveline
- Boot wear that can lead to grease loss and joint contamination
- Axle shaft noise during acceleration or load changes
- Replacement after CV joint or shaft wear on the rear left side
- Service for a 1993-1994 INFINITI J30 rear left axle replacement
Installation Notes
Verify rear left fitment against the vehicle build date and axle configuration before installation. Confirm axle nut thread size, hex size, and overall compressed length match the original part. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive identifies this axle shaft as a new component from an ISO 9001:1007 and TS 16949:2009 certified company. The NI-8434 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1994 | INFINITI | J30 | Rear Left | Thru 12/93; CV Axle Shaft |
| 1993 | INFINITI | J30 | Rear Left | Thru 12/93; CV Axle Shaft |
