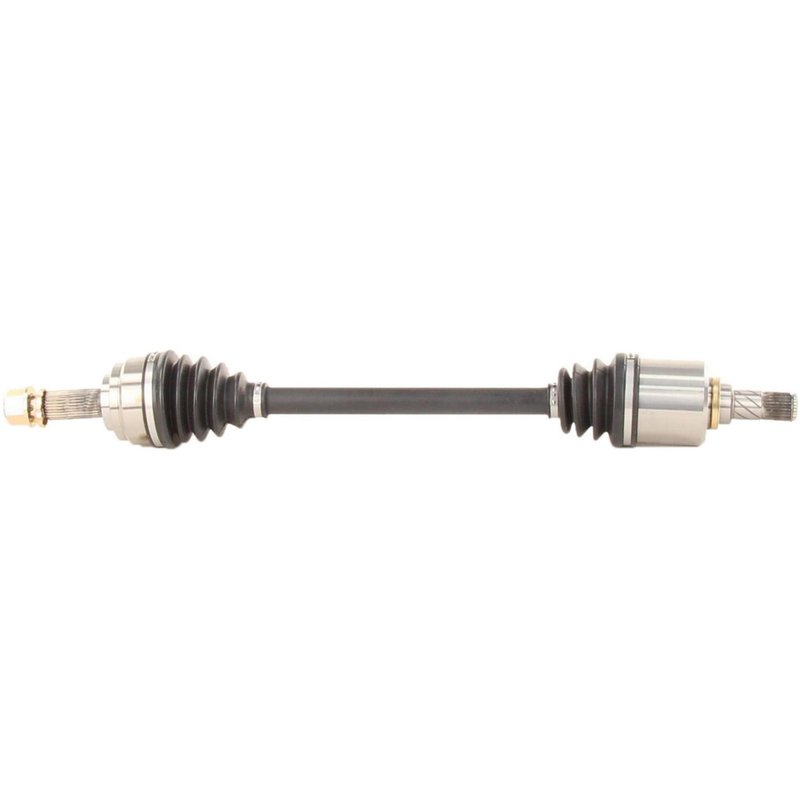

TrakMotive NI-8447 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8447 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 29.72 |
| Overall Compressed Length (mm) | 755 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 5 vehicles |
New replacement shaft. Built as a direct driveline replacement for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Comes with the hardware needed for installation.
Cross-references TrakMotive NI-8447 and 391013NF2A for the same application. See all 2.
CV Axle Shaft for Nissan LEAF
TrakMotive NI-8447 is a new CV axle shaft for the front left position on select Nissan LEAF models. It is built for 2013-2017 Nissan LEAF applications and includes the axle nut for a direct replacement setup.
Key Features
- Fits 2013-2017 Nissan LEAF, front left
- TrakMotive CV Axle Shaft, part number NI-8447
- New construction for replacement service
- Neoprene boot material
- Male inboard shaft connection with 27 inboard splines
- Conventional outboard joint with 29 outboard splines
- Overall compressed length: 29.72 in. (755 mm)
- Axle nut included; M24 x 1.5 thread, 1 1/4 in. hex size, cotter pin locking type
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is specified for the front left side of the Nissan LEAF and is engineered as a direct driveline replacement for the listed model years. The NI-8447 uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support consistent operation in the axle assembly. It also includes the axle nut, which helps match the required hardware specification for the application. TrakMotive positions the CV Axle Shaft line as a replacement driveline solution backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Symptoms
- Clicking or popping during turns from a worn front axle
- Vibration under acceleration caused by CV joint wear
- Torn or leaking axle boot on the front left side
- Excessive driveline play or noise from a damaged shaft
- Failed axle nut or service-related axle removal issues
Installation Notes
Verify front left fitment against the vehicle’s original axle dimensions, spline count, and axle nut specification before installation. Confirm that the application does not require an ABS tone ring, since this axle does not include one. Use the included cotter-pin style axle nut and follow factory torque procedures during installation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing, supporting consistent production standards for replacement driveline parts.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Nissan | LEAF | Front Left | CV Axle Shaft |
| 2016 | Nissan | LEAF | Front Left | CV Axle Shaft |
| 2015 | Nissan | LEAF | Front Left | CV Axle Shaft |
| 2014 | Nissan | LEAF | Front Left | CV Axle Shaft |
| 2013 | Nissan | LEAF | Front Left | CV Axle Shaft |
| No rows match your filter. | ||||
