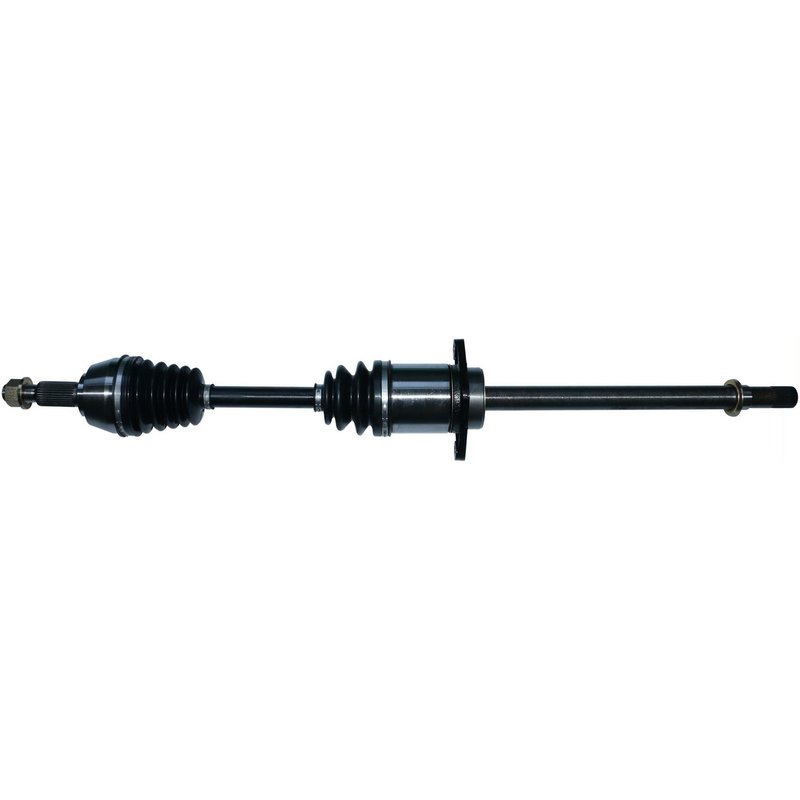

TrakMotive NI-8452 CV Axle Shaft - Front Right

CV Axle Shaft for Nissan Maxima

Restore front-end driveline performance with this TrakMotive CV Axle Shaft, part number NI-8452. It is a new axle assembly for the front right position on 2009-2014 Nissan Maxima models, built for direct replacement service with the correct spline and joint configuration.

TrakMotive’s CV Axle Shaft line focuses on application-specific driveline replacement parts. NI-8452 is built for the Nissan Maxima front right location and follows the listed OE-style fitment details for a straightforward replacement on the confirmed vehicle range.

Key Features

• Fits 2009-2014 Nissan Maxima, front right
• TrakMotive CV Axle Shaft, part number NI-8452
• New replacement axle assembly
• Male inboard shaft connection style
• Conventional outboard joint type with spline connection
• 29 inboard splines and 32 outboard splines
• Neoprene boot material
• Axle nut included with cotter pin locking type
• Axle nut thread size: M24 x 1.5
• Overall compressed length: 39.9 in. (1013.5 mm)

Detailed Description

The TrakMotive NI-8452 CV axle shaft is a direct-fit driveline replacement for the front right side of the 2009-2014 Nissan Maxima. It is a new axle assembly with a male inboard connection, a conventional outboard joint, and the specified spline counts to match the listed application. The included axle nut uses a hex head and cotter pin locking design, with M24 x 1.5 thread size and a 1 1/4 in. hex size.

This part cross-references Cardone New 66-6306 and Cardone Reman 60-6306 for the same application. Use NI-8452 when servicing a Nissan Maxima front right CV axle shaft replacement and when matching the confirmed OE-style dimensions and connection details.

What It Helps Fix

• Clicking or popping during turns from a worn CV joint
• Vibration under acceleration from a damaged axle shaft
• Grease leakage from a torn or deteriorated boot
• Noise from excessive driveline play
• Front right axle failure on the listed Nissan Maxima models

Installation Notes and Tips

Verify the vehicle’s front right application, spline count, and axle nut thread size before installation. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle configuration. Inspect the hub, seals, and surrounding suspension components during replacement to help ensure proper axle operation.

Quality Assurance

TrakMotive identifies this CV axle shaft as a new part and states that the brand operates as an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also backs this part with a limited lifetime warranty.
