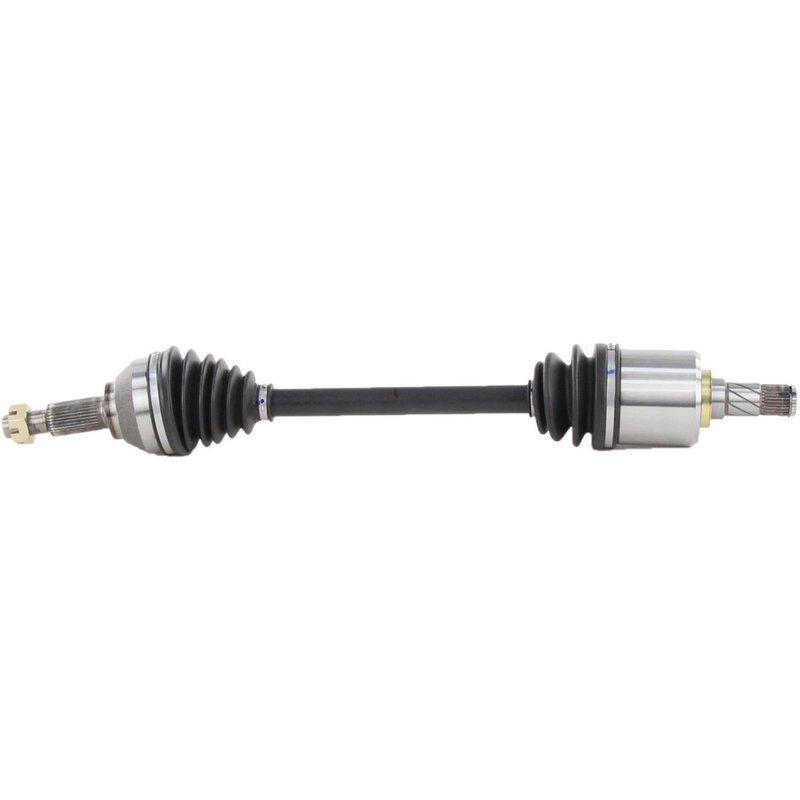

TrakMotive NI-8516 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8516 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17.5 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.66 |
| Overall Compressed Length (mm) | 728 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 3 vehicles |
New CV axle shaft. A direct replacement for restoring smooth driveline operation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Comes ready with a hex nut and cotter-pin locking style.
Cross-references TrakMotive NI-8516 and C9101-1JAMJ-NW for the same application. See all 2.
CV Axle Shaft for Nissan Quest
Restore driveline performance with this TrakMotive CV axle shaft, part number NI-8516. It is a new front left axle assembly for 2015-2017 Nissan Quest models with ABS, built for direct replacement service in the driveline and axles category.
- Fits 2015-2017 Nissan Quest, front left, w/ ABS
- New CV axle shaft for front-wheel-drive driveline service
- Neoprene boot material for joint protection
- Includes axle nut with cotter pin locking type
- Male inboard shaft connection style with 29 inboard splines
- Conventional outboard joint type with spline connection and 32 outboard splines
- Overall compressed length: 28.66 in. (728 mm)
- Axle nut thread size: M24x1.5; hex size: 35.5 mm
TrakMotive NI-8516 is a direct-fit CV axle shaft for the front left position on the 2015-2017 Nissan Quest with ABS. The axle is new, uses a neoprene boot, and includes the axle nut specified for the application. TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to match vehicle-specific fitment requirements, and this part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Driveline Issues This Part Addresses
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration caused by a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- Noise or looseness from spline or joint wear
- ABS-equipped front axle replacement needs on Nissan Quest models
Installation Notes and Tips
Verify front left fitment before installation and confirm the axle nut thread size, hex size, and locking style match the vehicle specification. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle. Torque fasteners to the vehicle manufacturer’s specifications and confirm smooth joint movement after installation.
Quality Assurance
TrakMotive lists this CV axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Nissan | Quest | Front Left | w/ ABS; CV Axle Shaft |
| 2016 | Nissan | Quest | Front Left | w/ ABS; CV Axle Shaft |
| 2015 | Nissan | Quest | Front Left | w/ ABS; CV Axle Shaft |
