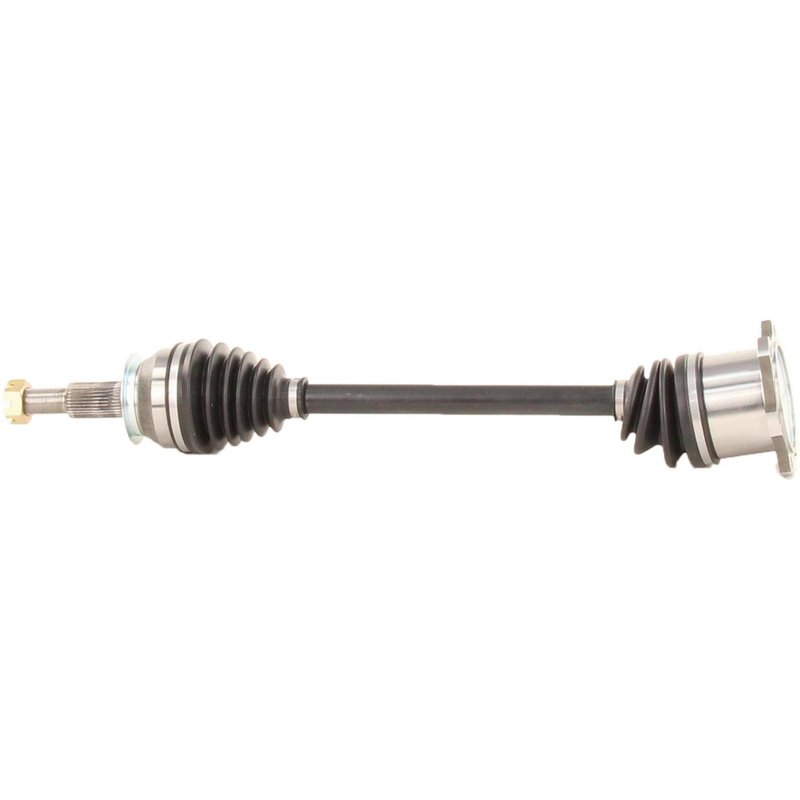

TrakMotive NI-8518 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft NI-8518

The TrakMotive CV Axle Shaft NI-8518 is designed specifically for INFINITI G37 and Q60 models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with INFINITI G37 and Q60 models
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for enhanced durability
• Flange type inboard joint and conventional outboard joint
• Overall compressed length of 26.65 inches (677 mm)
• 32 outboard splines with spline shaft connection
• Hex head axle nut, 35.5 mm across flats

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV components engineered for precise fitment and durability. The NI-8518 part is part of this line, featuring a flange-type inboard joint and a conventional outboard joint to match factory specifications for INFINITI vehicles. This line emphasizes reliable driveline components that maintain vehicle handling and drivetrain integrity.

Technical Specifications and Features

The NI-8518 CV axle shaft includes a neoprene boot designed to resist wear and environmental damage. The axle nut is a hex head type measuring 35.5 mm across flats, with a height of 17.5 mm and a length of 41 mm, secured by a cotter pin locking system to prevent loosening. The inboard joint connects via a flange style, while the outboard joint uses a conventional spline connection with 32 splines. The overall compressed length of 26.65 inches (677 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on INFINITI G37 and Q60
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leakage with durable neoprene boot
• Restores secure wheel connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive NI-8518 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to maintain locking integrity. Inspect the surrounding suspension and driveline components for wear during installation. The neoprene boot should be checked for proper seating to prevent contamination. This part is designed for direct replacement on compatible INFINITI G37 and Q60 models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8518 is a new, not remanufactured, component built to meet OEM standards. It includes the axle nut and features durable materials such as neoprene for the boot to ensure long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
