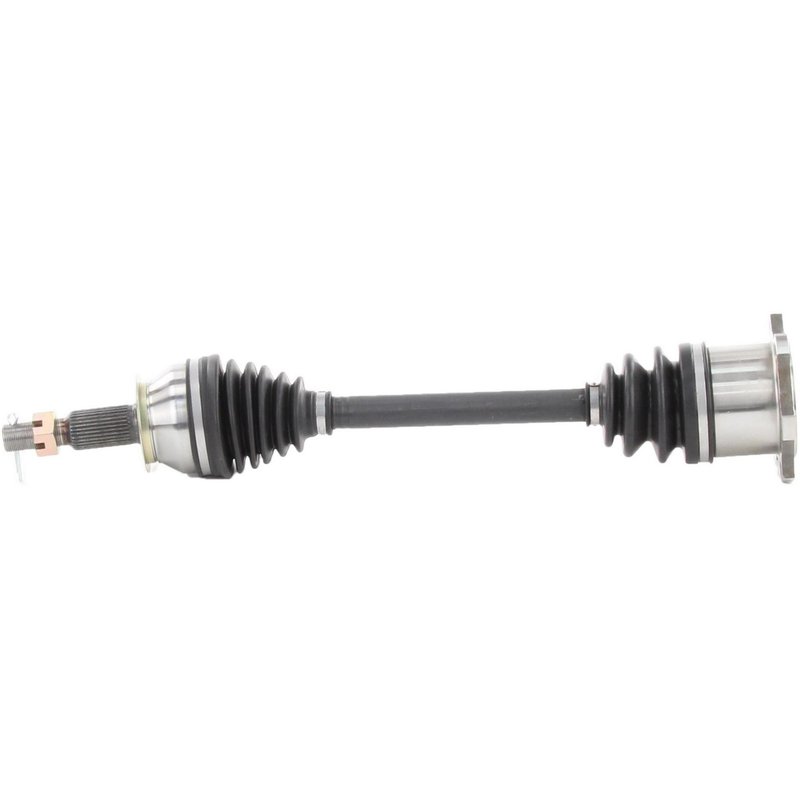

TrakMotive NI-8520 CV Axle Shaft - Rear Left

TrakMotive CV Axle Shaft NI-8520 Overview

The TrakMotive CV Axle Shaft NI-8520 is designed specifically for Infiniti G37 and Q60 models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Infiniti G37 and Q60 models
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced flexibility and protection
• Includes axle nut with cotter pin locking type for secure installation
• Overall compressed length of 24.57 inches (624 mm) for precise fit
• Inboard joint features flange connection style
• Outboard joint uses conventional spline connection with 32 splines
• Axle nut specifications: M24*1.5 thread size, 35.5 mm hex size, 17.5 mm height

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering reliable constant velocity components tailored for specific vehicle applications. This product line emphasizes precise engineering, including flange-type inboard joints and conventional outboard joints, to maintain driveline integrity and smooth power transfer. The NI-8520 model exemplifies these standards with its neoprene boot and detailed axle nut specifications, ensuring compatibility and durability for Infiniti G37 and Q60 vehicles.

Detailed Product Description

The NI-8520 CV axle shaft from TrakMotive is engineered to meet the exact specifications required by Infiniti G37 and Q60 models. It features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint uses a flange connection style, providing a secure and stable attachment to the transmission. The outboard joint is a conventional type with 32 splines, ensuring a precise fit with the wheel hub. The included axle nut has a hex head measuring 35.5 mm across flats, with a height of 17.5 mm and a thread size of M24*1.5, secured by a cotter pin locking mechanism to prevent loosening during operation. The overall compressed length of 24.57 inches (624 mm) matches factory specifications for proper installation and function.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Infiniti G37 and Q60
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Addresses axle nut loosening with included cotter pin locking design

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the NI-8520 part number matches the required CV axle shaft for your Infiniti G37 or Q60. When installing, confirm the flange and spline connections are properly seated to avoid premature wear. Torque the axle nut to manufacturer specifications and secure it with the cotter pin to maintain locking integrity. Inspect the neoprene boot for any damage during installation to ensure long-term protection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8520 is a new component manufactured to meet OEM standards for fit and function. While specific warranty details are not provided, TrakMotive products typically undergo quality control inspections to ensure reliability and performance in driveline applications.
