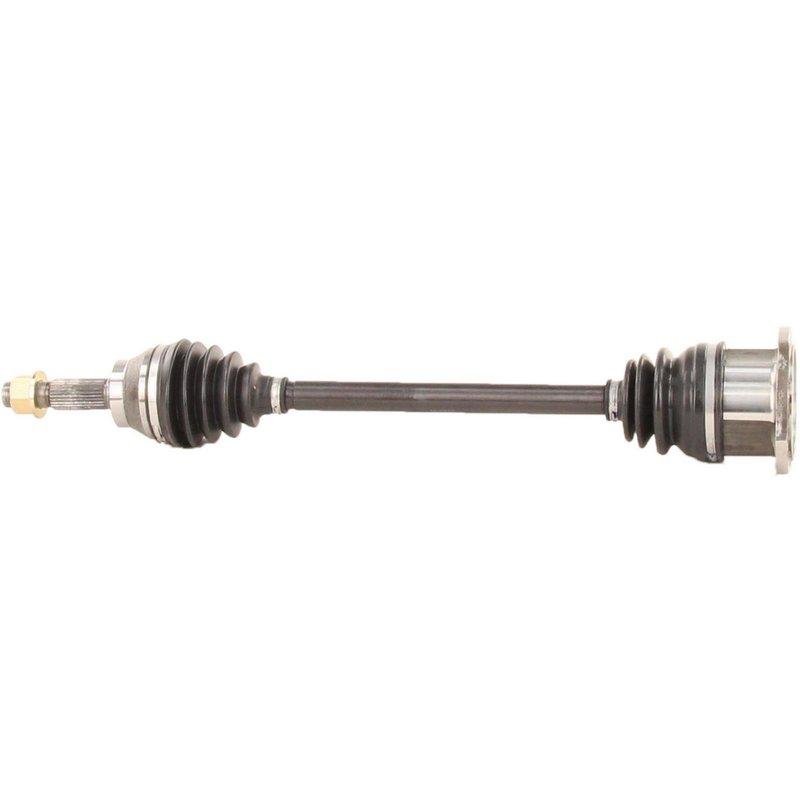

TrakMotive NI-8525 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8525 for Infiniti M56

The TrakMotive CV Axle Shaft NI-8525 is designed specifically for the Infiniti M56, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining vehicle stability and handling.

• Compatible with Infiniti M56 models
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for enhanced durability
• Hex head axle nut measuring 1 1/4 inch (31.8 mm)
• Overall compressed length of 25.94 inches (659 mm)
• Inboard flange joint and outboard conventional joint types
• 27 outboard splines for secure shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity components engineered for precise fitment and durability. This line includes shafts with flange-style inboard joints and conventional outboard joints, designed to meet OEM specifications. The NI-8525 model exemplifies this approach, offering a neoprene boot and a secure spline connection to ensure long-lasting driveline integrity.

Technical Specifications and Features

The NI-8525 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut included is a hex head type with a 1 1/4 inch (31.8 mm) hex size and a height of 1 inch (23.6 mm), secured with a cotter pin locking mechanism to prevent loosening during operation. The inboard joint uses a flange connection style, while the outboard joint employs a conventional spline connection with 27 splines, ensuring a secure fit and efficient torque transfer. The overall compressed length of 25.94 inches (659 mm) matches the OEM specifications for the Infiniti M56.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Infiniti M56
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by replacing torn or degraded boots
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive NI-8525 CV axle shaft on an Infiniti M56, ensure the cotter pin is properly engaged to secure the axle nut. Verify that the neoprene boot is seated correctly to prevent contamination. Use the correct torque specifications for the M24*1.5 threaded axle nut to avoid over-tightening. It is recommended to inspect related suspension and driveline components during installation for comprehensive maintenance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, the product is designed for durability and reliable performance in the Infiniti M56 driveline system.
