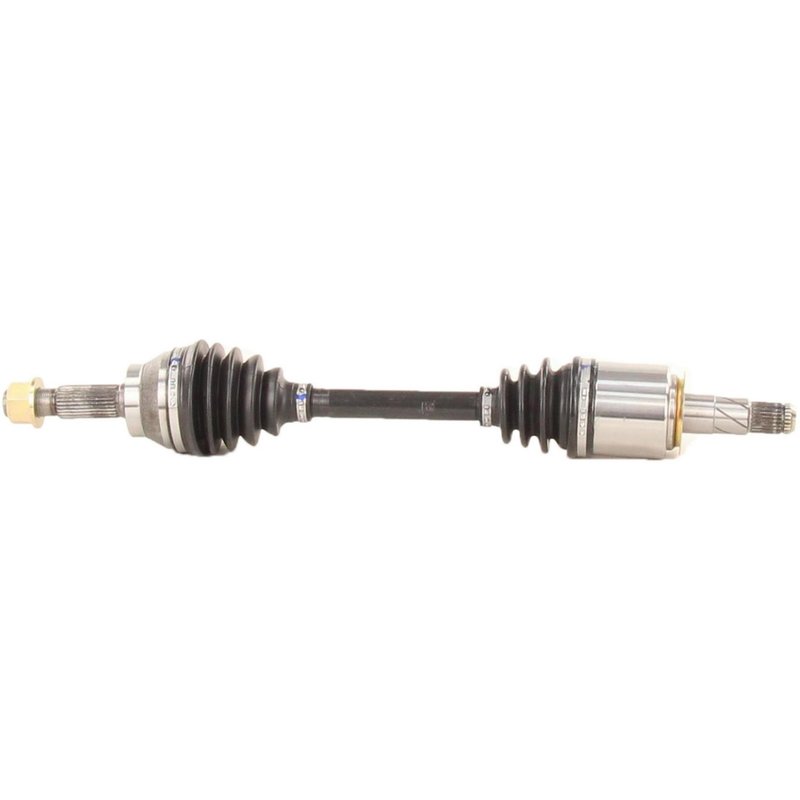

TrakMotive NI-8532 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8532

The TrakMotive CV Axle Shaft NI-8532 is designed for reliable driveline performance in select INFINITI and Nissan vehicles. Engineered to meet OEM specifications, this new CV axle shaft supports smooth power transfer and durability for models like the Nissan GT-R, M35, and M37.

• Compatible with INFINITI GT-R, M35, and M37 models
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 24.02 inches (610 mm)
• Hex head axle nut measuring 1 1/4 inch (31.8 mm) across flats
• New, not remanufactured, ensuring original performance

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for a range of vehicles. This line emphasizes quality materials and accurate specifications, such as the male inboard joint type and conventional outboard joint, to maintain proper drivetrain function. The NI-8532 model exemplifies these standards with its neoprene boot and detailed axle nut specifications, ensuring compatibility and durability for Nissan and INFINITI applications.

Technical Specifications and Features

The NI-8532 CV axle shaft features a male inboard joint with 25 splines and a conventional outboard joint with 27 splines, designed for secure shaft connections. The axle nut included has a hex head type with a 1-inch height (23.6 mm) and a thread size of M24x1.5, secured by a cotter pin locking system. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The overall compressed length of 24.02 inches (610 mm) ensures proper fitment within the driveline assembly.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Nissan GT-R, M35, and M37
• Addresses issues such as axle shaft vibration and noise during acceleration
• Resolves boot damage or joint wear that can lead to grease leakage
• Corrects axle nut thread or locking failures to maintain secure wheel attachment
• Improves driveline reliability and smooth power transfer

Installation Notes and Tips

When installing the TrakMotive NI-8532 CV axle shaft, ensure the cotter pin locking axle nut is properly secured to prevent loosening. Verify the spline counts on both inboard (25 splines) and outboard (27 splines) ends match the vehicle specifications. Use appropriate torque settings for the axle nut and inspect the neoprene boot for any damage during installation. Proper alignment and secure connections are critical for optimal driveline performance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous testing and material selection. While specific warranty details are not provided here, the product is designed for durability and reliable service life in compatible INFINITI and Nissan vehicles.
