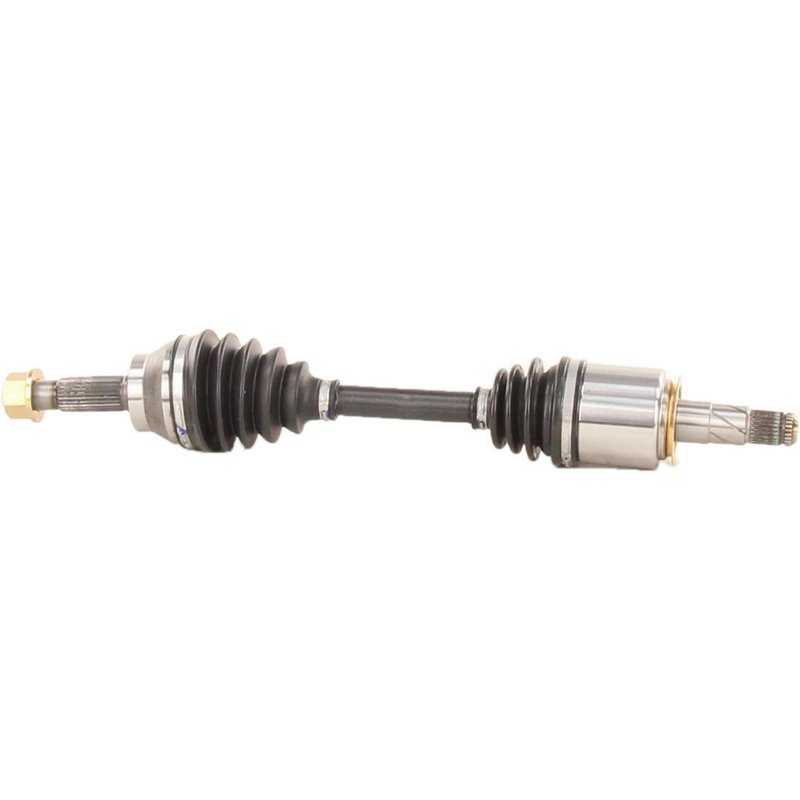

TrakMotive NI-8536 CV Axle Shaft - Front Right
| Brand | TrakMotive NI-8536 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23.6 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.23 |
| Overall Compressed Length (mm) | 590 |
| Product line | CV Axle Shaft |
| Fits | INFINITI · 9 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Cotter-pin locking type simplifies installation.
Cross-references Cardone New 66-6282, TrakMotive NI-8536 and 39100JK500 for the same application. See all 4.
Front Right CV Axle Shaft for Infiniti
TrakMotive NI-8536 is a new front right CV axle shaft for select Infiniti G35, G37, and G25 applications. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service on the listed vehicles.
Key Features
- TrakMotive CV Axle Shaft, part number NI-8536
- Fits 2007-2008 Infiniti G35, front right
- Fits 2009-2012 Infiniti G37, front right
- Fits 2011-2012 Infiniti G25, front right
- Fits 2013 Infiniti G37, front right, thru 2/13
- New axle assembly with 23.23 in. overall compressed length
- Neoprene boot material for driveline protection
- Includes axle nut with M24 x 1.5 thread, hex head, and cotter pin locking type
- 25 inboard splines and 27 outboard splines
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for front right service on the Infiniti G35, G37, and G25 platforms listed above. The NI-8536 uses a male inboard connection and spline-style outboard shaft connection, with a conventional outboard joint and a neoprene boot to support driveline operation in the original application. TrakMotive identifies this axle as a new replacement part and notes that ABS axles fit non-ABS applications unless otherwise noted.
This part cross-references Cardone New 66-6282 for the same application.
Common Replacement Needs
- Clicking or popping from the front right axle area during turns
- Vibration or shudder during acceleration
- Torn or leaking CV boot on the front axle
- Excessive play or wear in the driveline shaft assembly
- Loss of smooth power transfer to the front wheel
Installation Notes
Verify spline count, axle nut thread size, and overall compressed length before installation. Confirm front right position and model-year coverage for your Infiniti G35, G37, or G25, including the 2013 G37 through 2/13 note. Replace the axle nut if required by service procedure and torque all fasteners to factory specifications.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | INFINITI | G37 | Sedan | AWD | Front Right | Thru 2/13; CV Axle Shaft |
| 2012 | INFINITI | G25 | — | AWD | Front Right | CV Axle Shaft |
| 2012 | INFINITI | G37 | Sedan | AWD | Front Right | CV Axle Shaft |
| 2011 | INFINITI | G25 | — | AWD | Front Right | CV Axle Shaft |
| 2011 | INFINITI | G37 | Sedan | AWD | Front Right | CV Axle Shaft |
| 2010 | INFINITI | G37 | Sedan | AWD | Front Right | CV Axle Shaft |
| 2009 | INFINITI | G37 | Sedan | AWD | Front Right | CV Axle Shaft |
| 2008 | INFINITI | G35 | — | AWD | Front Right | CV Axle Shaft |
| 2007 | INFINITI | G35 | — | AWD | Front Right | CV Axle Shaft |
